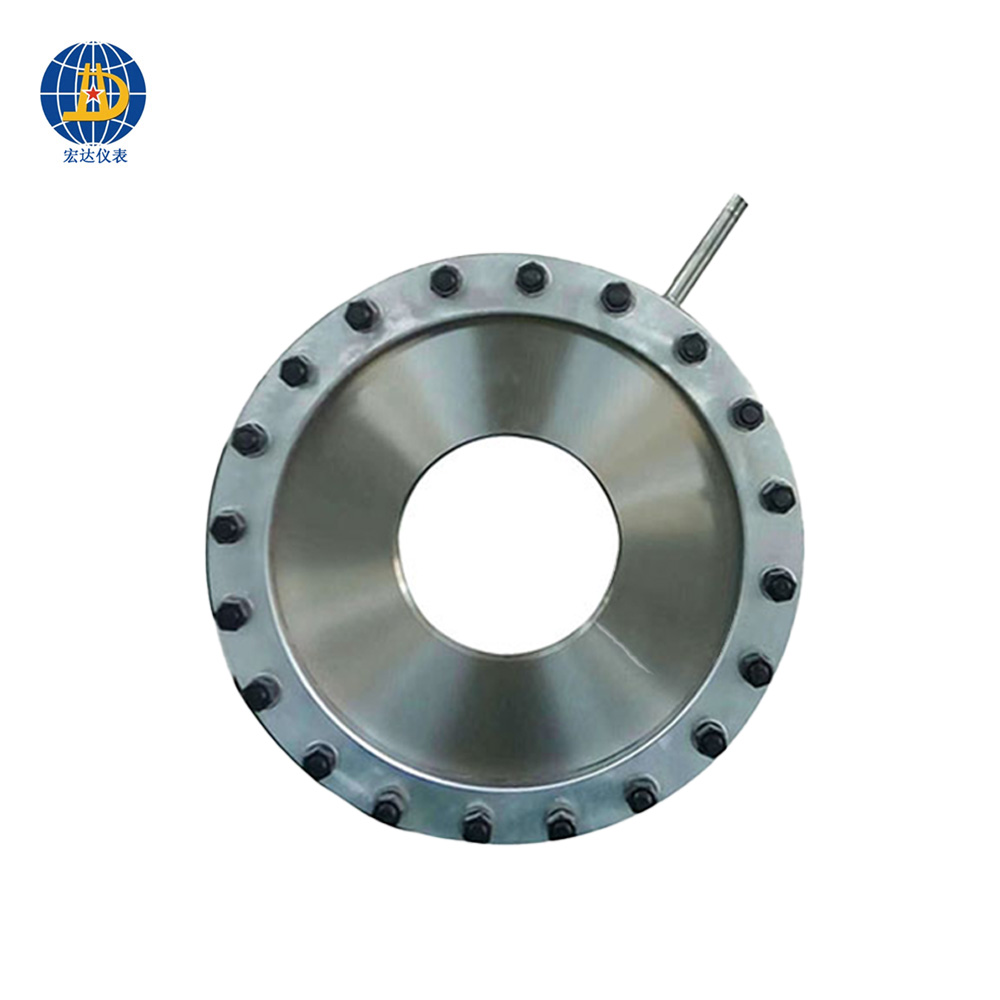

Quadrant Edge Orifice Throttling Assembly

Product Advantages This Quadrant Edge Orifice Throttling Assembly is a specialized differential pressure flow measurement component optimized for low Reynolds number fluids. Its quadrant edge profile delivers steady measurement readings for viscous and low-flow media. Compared with liquid turbine flow meter and gas turbine flow meter, it has no rotating wearable components, ensuring long service life and minimal maintenance under continuous industrial operation. Detail Features The assembly features heavy-duty bolted flange structure and precision machined quadrant edge orifice plate with pressure tapping port. It calculates flow rate by detecting throttling differential pressure. Its operating principle differs from electromagnetic flow meter, Ultrasonic Flow meter and vortex flow meter. It performs better at low flow conditions than standard orifice plate flowmeter and can be manufactured from various alloy materials for corrosion resistance. Application Scope It is widely adopted i…
