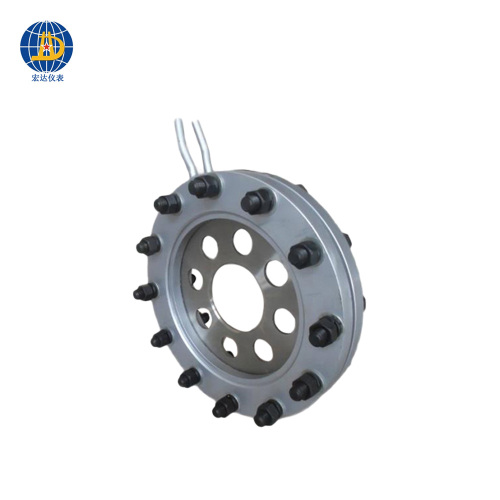

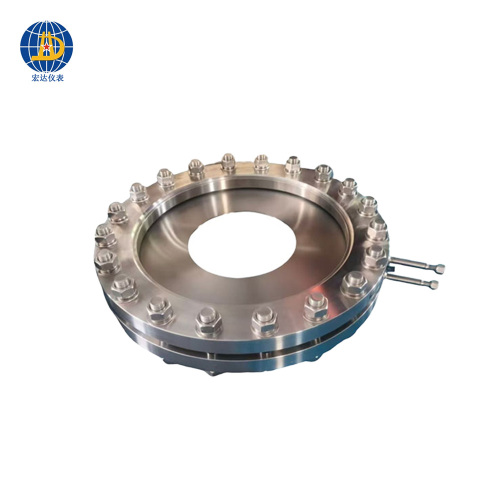

High-pressure Orifice Flange Meter

Product Advantages This High-pressure Orifice Flange Meter is a heavy-duty differential pressure flow measuring device for harsh industrial pipeline conditions. It adopts reinforced flange assembly to withstand extreme pressure and temperature. Compared with liquid turbine flow meter and gas turbine flow meter, it contains no rotating vulnerable parts, ensuring stable and repeatable flow readings for high-pressure gas, steam and liquid over long service cycles. Detail Features The meter is constructed with high-strength alloy steel, equipped with a precision machined orifice plate and built-in pressure tapping ports. It calculates flow through the pressure difference generated by fluid throttling. Its operating principle differs from electromagnetic flow meter, Ultrasonic Flow meter and vortex flow meter. As a high-pressure variant of orifice plate flowmeter, it uses dense bolt sets for reliable sealing and prevents leakage under severe working environments. Application Scope It is wi…
