Nozzle Flow Throttling Assembly

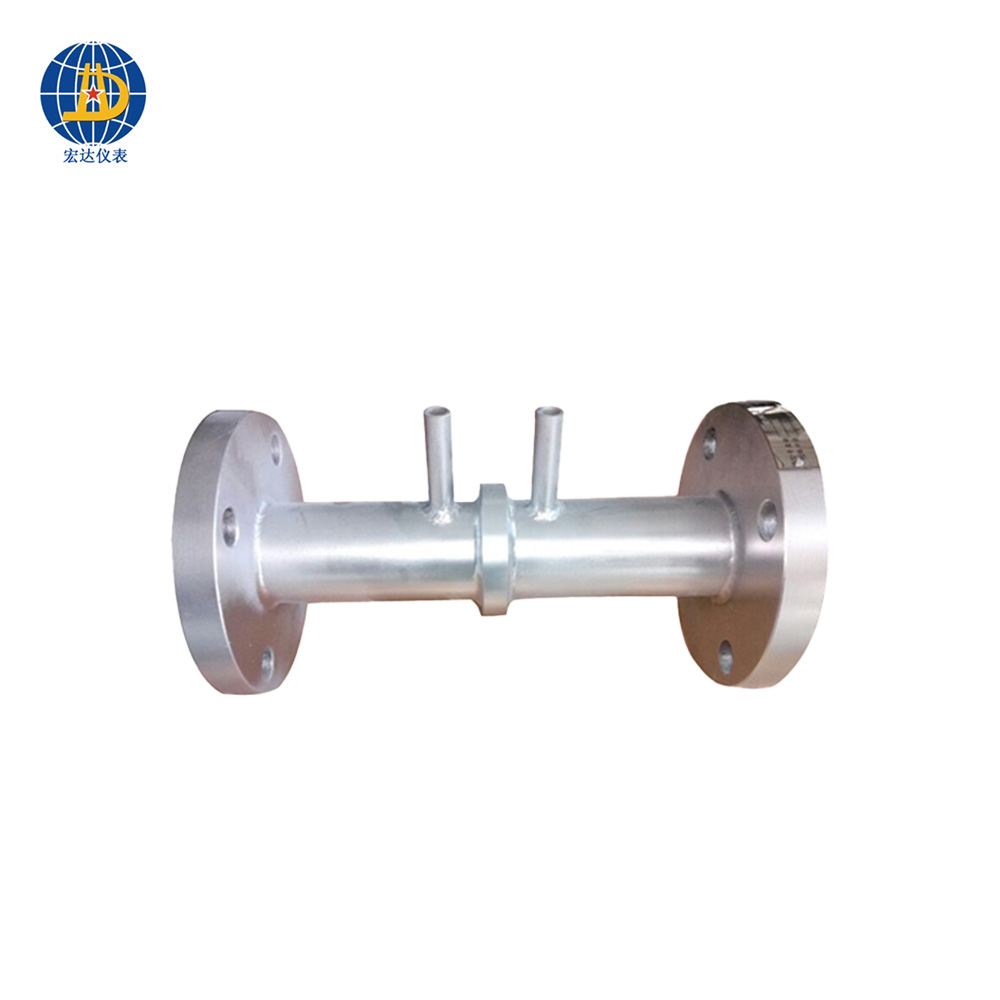

Product Advantages This Nozzle Flow Throttling Assembly is a high-performance differential pressure flow measuring component for industrial pipelines. The streamlined nozzle structure offers strong wear resistance and stable flow signal under high-speed fluid conditions. Compared with liquid turbine flow meter and gas turbine flow meter, it has no rotating moving parts, so it can maintain long-term reliable measurement for high-temperature steam and high-speed gas media with low maintenance demand. Detail Features This assembly adopts flanged metal pipe body with precision-machined flow nozzle and built-in pressure tapping pipes to capture differential pressure signals. It calculates flow volume by detecting pressure drop when fluid passes through the nozzle. Its measuring principle is different from electromagnetic flow meter, Ultrasonic Flow meter and vortex flow meter. It shows better anti-abrasion performance than traditional orifice plate flowmeter when handling high velocity flu…
