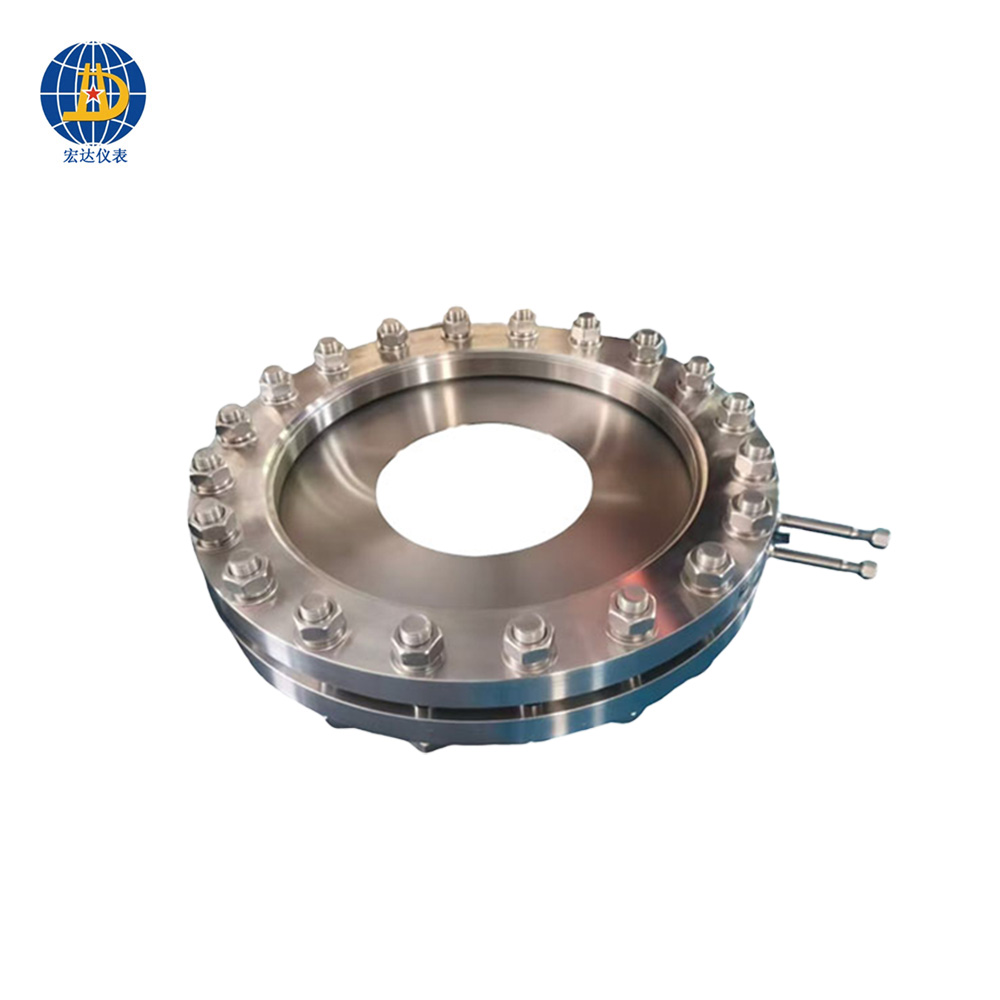

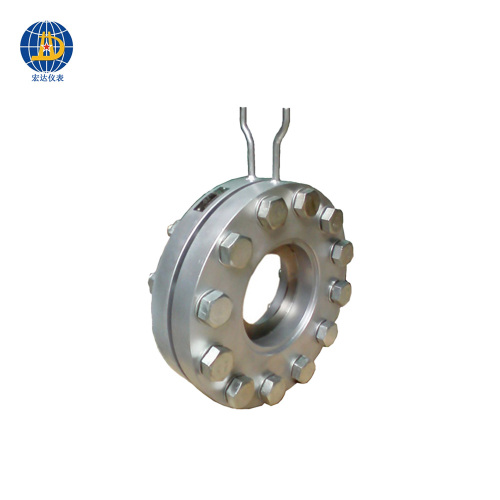

Integral Flange Orifice Throttling Assembly

Product Advantages This Integral Flange Orifice Throttling Assembly is a high-precision throttling component for orifice plate flowmeter. Its integrated flange and orifice plate design optimizes the flow field and simplifies on-site installation. Compared with liquid turbine flow meter and gas turbine flow meter, it has no rotating wearing parts, delivering excellent stability and repeatability under high temperature and high pressure operating environments. Detail Features The assembly adopts one-piece flange structure with precisely machined orifice and standard pressure tapping interfaces. It measures flow rate by detecting differential pressure from fluid throttling. Its working principle is different from electromagnetic flow meter, Ultrasonic Flow meter and vortex flow meter. The high-strength stainless steel construction provides reliable sealing, which outperforms many split throttling devices in long-term operational stability. Application Scope It is widely used in power, pe…
