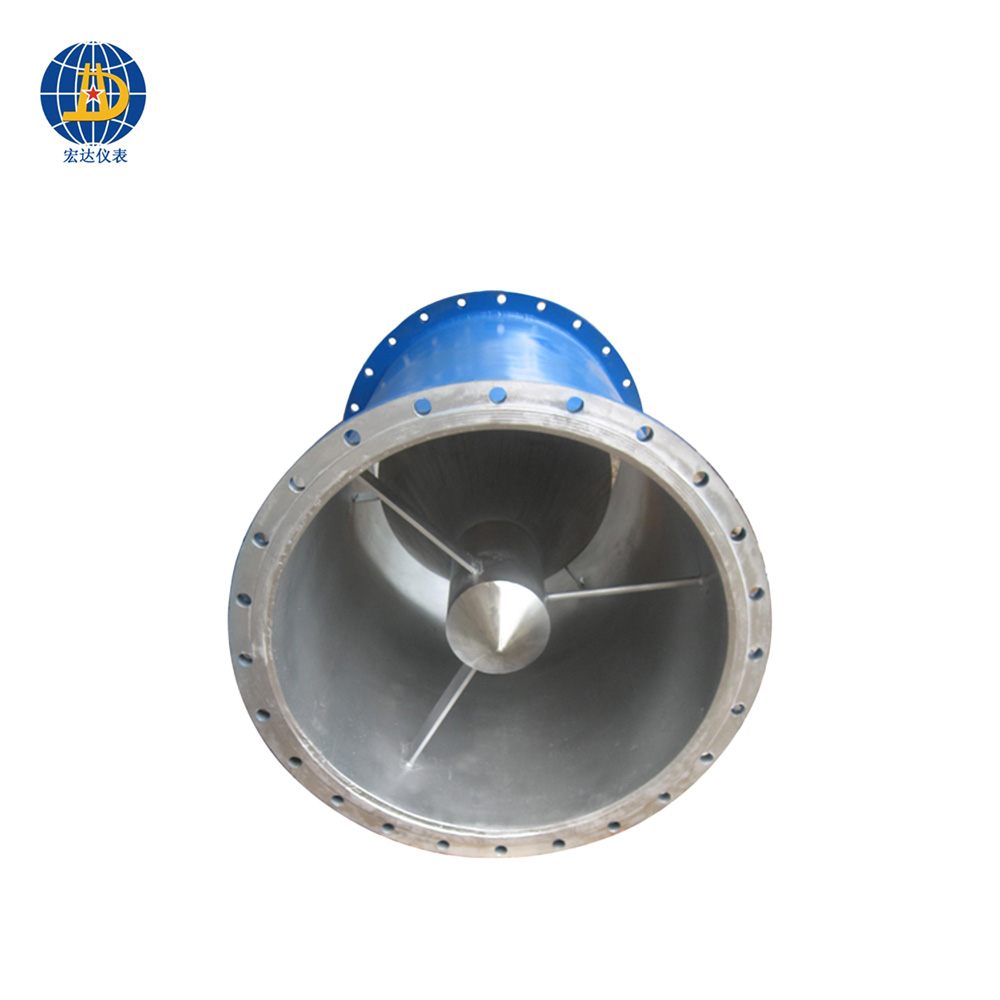

Large Bore V-Cone Flow Unit

Product Advantages This Large Bore V-Cone Flow Unit is a heavy-duty differential pressure flowmeter designed for large-diameter industrial pipelines. Its unique V-cone structure straightens turbulent fluid and reduces requirements for long straight pipe segments. Compared with liquid turbine flow meter and gas turbine flow meter, it has no rotating vulnerable parts, offering strong anti-clogging ability and stable measurement for gas, steam and multi-phase fluids. Detail Features The unit adopts large-size flanged pipe body with welded V-cone internal throttling component and standard pressure tapping ports. It calculates flow rate through fluid pressure difference before and after the cone. Its measuring principle differs from electromagnetic flow meter, Ultrasonic Flow meter and vortex flow meter. It creates less permanent pressure loss than conventional orifice plate flowmeter and supports custom coating and material selection. Application Scope It is widely applied in water treatm…
