Multi-hole Orifice Flow Meter Assembly

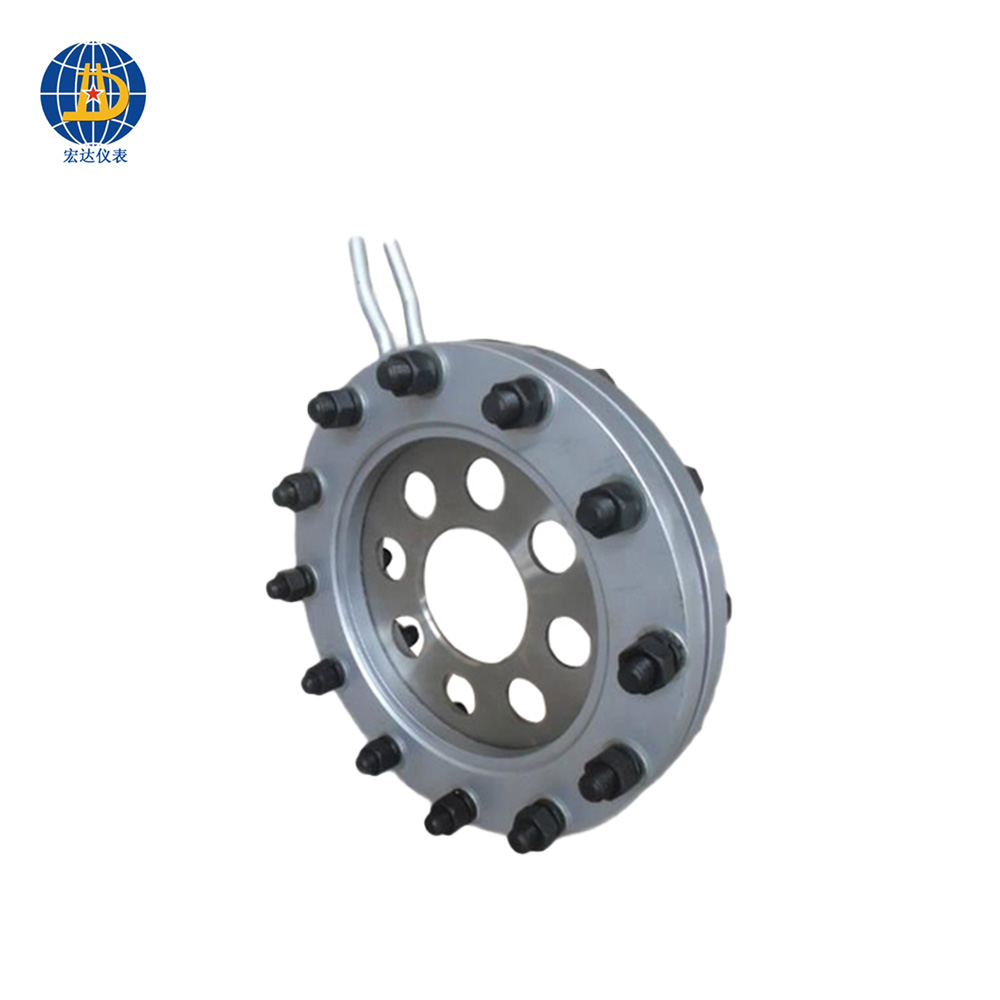

Product Advantages This Multi-hole Orifice Flow Meter Assembly is an upgraded differential pressure flow device derived from the standard orifice plate flowmeter. Its multi-hole balanced design can stabilize fluid flow field and reduce turbulence impact. Compared with liquid turbine flow meter and gas turbine flow meter, it has no rotating wearing parts, bringing better measurement repeatability and lower requirement for upstream and downstream straight pipe sections. Detail Features The assembly includes balanced multi-hole orifice plate, heavy-duty flange and pressure tapping tubes for differential pressure signal collection. It measures flow rate based on throttling pressure drop principle. Its working mechanism differs from electromagnetic flow meter, Ultrasonic Flow meter and vortex flow meter. The evenly distributed holes balance the fluid force, which minimizes plate vibration and extends service life compared with traditional single-hole orifice structure. Application Scope It…
