Power Management and Drive Control PCBA

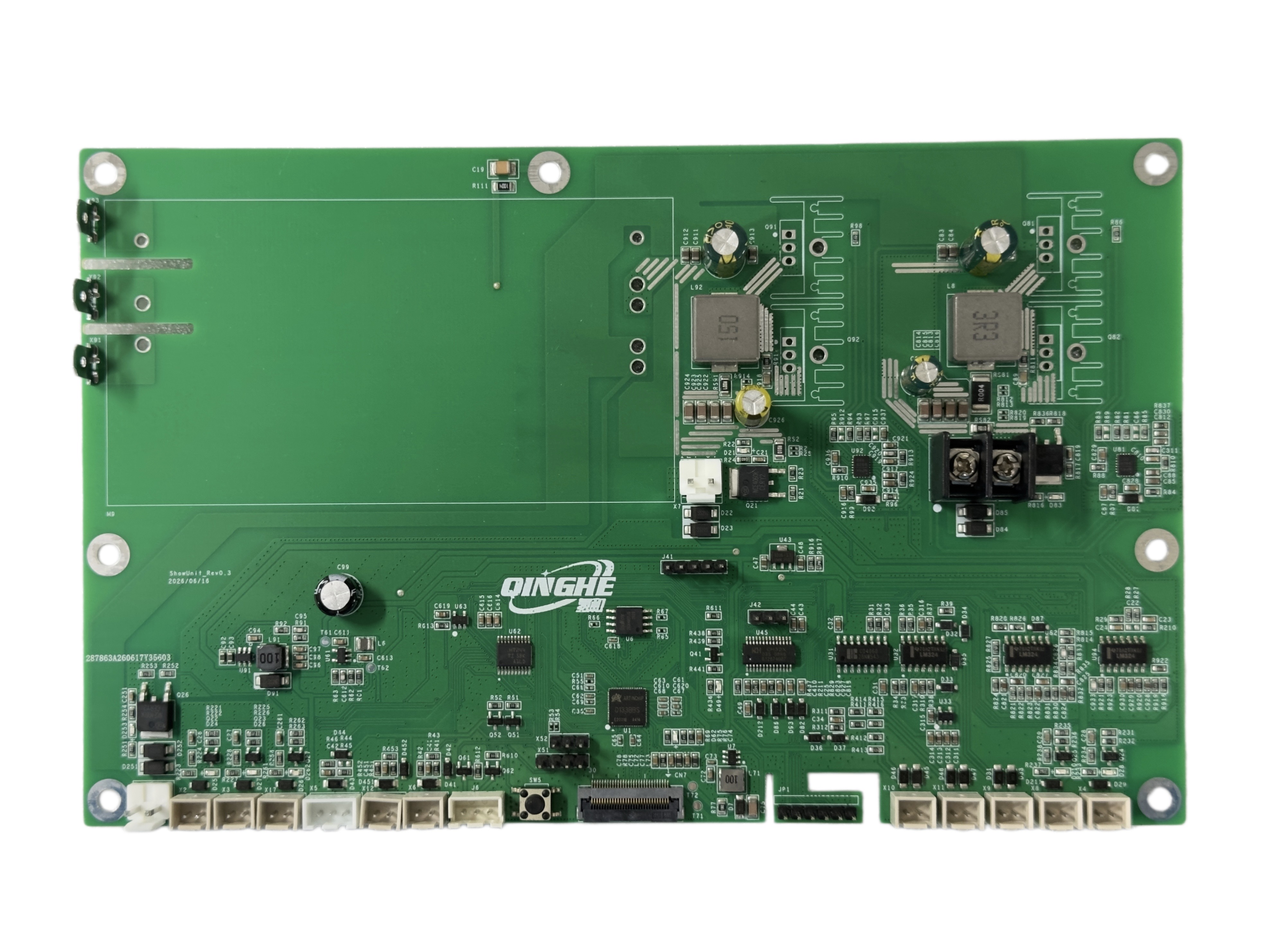

The power management and drive control PCBA holds power conversion, load-control circuitry, signal processing, and multiple external interfaces on a single large-format FR-4 board. Two visible power conversion sections carry shielded inductors, electrolytic capacitors, and associated power components, and multiple driver and control ICs sit across the lower section of the board. With this architecture, the PCBA coordinates power distribution and equipment-level control within one electronic system. The board provides a wide range of board-level connections for linking to external devices. Multiple wire connectors line the lower edge, along with an FPC/FFC connector, pin headers, and a screw terminal for different electrical connections. These interfaces connect peripheral circuits, sensors, actuators, or other functional modules according to the final equipment configuration.   The dense control section uses surface mount technology as a core part of the assembly architecture. Numero…
