Touch Key LED Control Panel PCBA

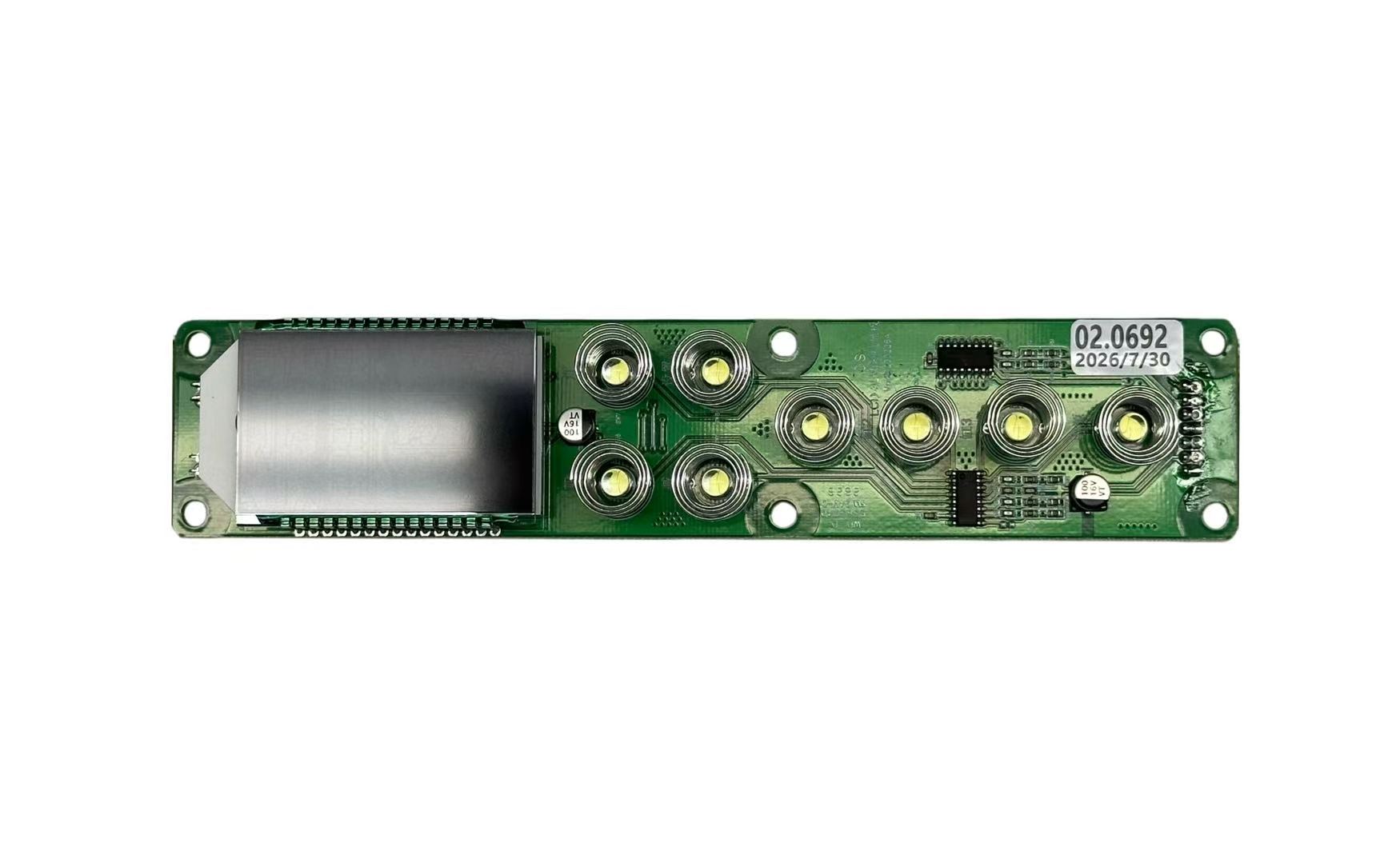

The Touch Key LED Control Panel PCBA is built as a compact human-machine interface for electronic equipment that needs touch input and visual status indication. Its long, narrow FR-4 structure joins eight spring-type capacitive touch keys with corresponding LED indicators on the board. The panel presents multiple user commands and equipment states on a single board. Surface mount technology integrates the control, sensing, indication, and supporting circuits within the available panel space. Eight circular touch positions span the front of the board, and each connects to a spring-type contact structure with an LED at its center. This arrangement lets the panel detect user input and provide illuminated feedback per the programmed equipment logic. Supporting ICs, resistors, capacitors, and other signal-conditioning components sit around the touch sections, while a metal-shielded area occupies one end of the PCBA. External connection points let touch and indicator signals interface with…
