High-Power Inverter Power Supply PCBA

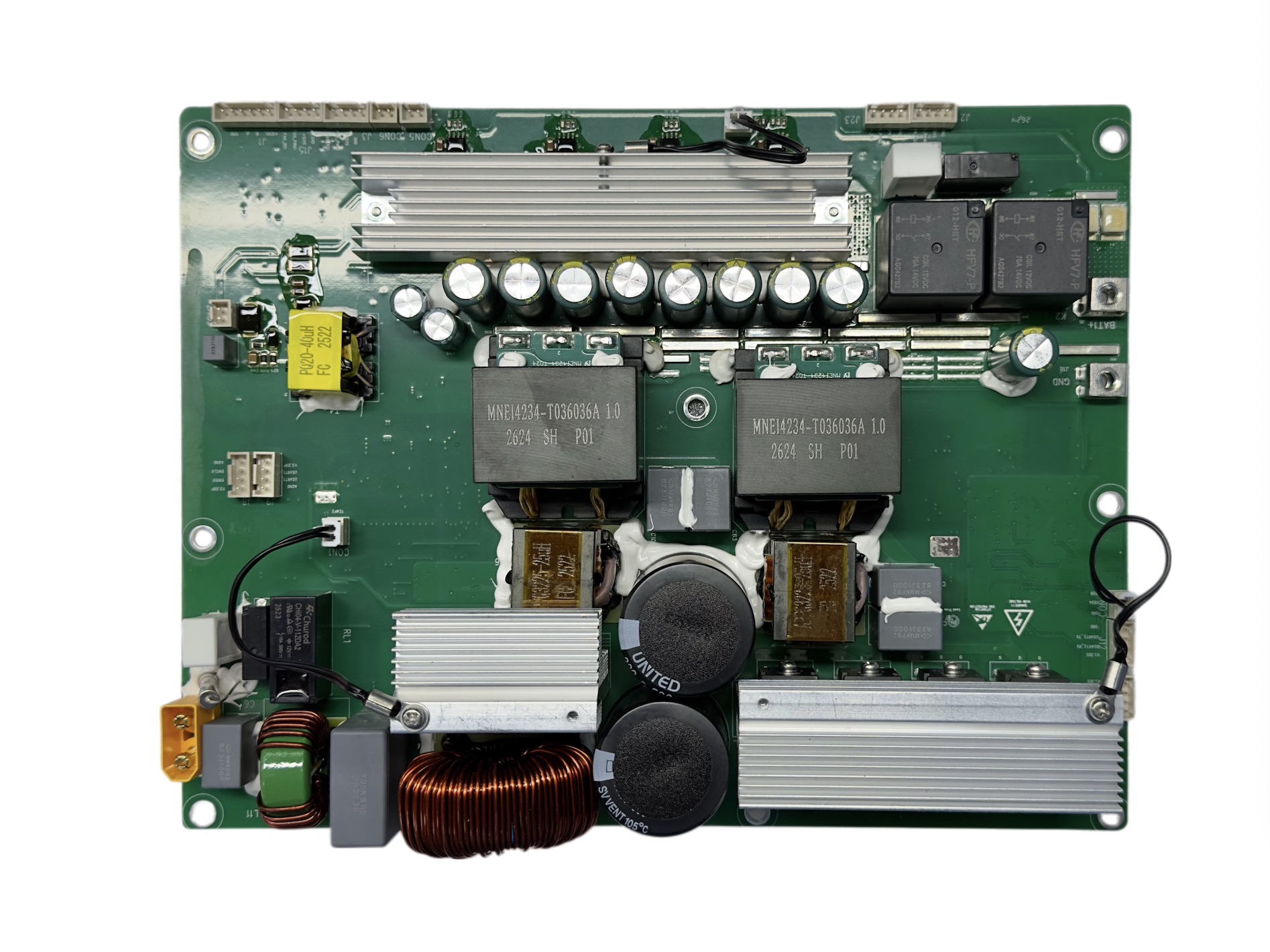

This high-power inverter power supply PCBA is built for high-current power conversion and energy storage equipment. The board carries power switching, filtering, voltage conversion, thermal management, and output control functions on a large FR-4 circuit board. It fits energy storage inverters, battery-powered conversion systems, industrial power equipment, and other applications that need stable high-power electrical conversion. The visible assembly includes large power transformers, electrolytic capacitors, magnetic components, power relays, aluminum heat sinks, high-current connection points, and multiple external connectors. The design mechanically reinforces heavy magnetic components and power devices to keep the assembly stable. The power section also includes temperature sensing to support thermal monitoring during operation.   High-current circuit design is a core part of this PCB design and layout work. The board uses wide power paths and large conductive areas to handle de…
