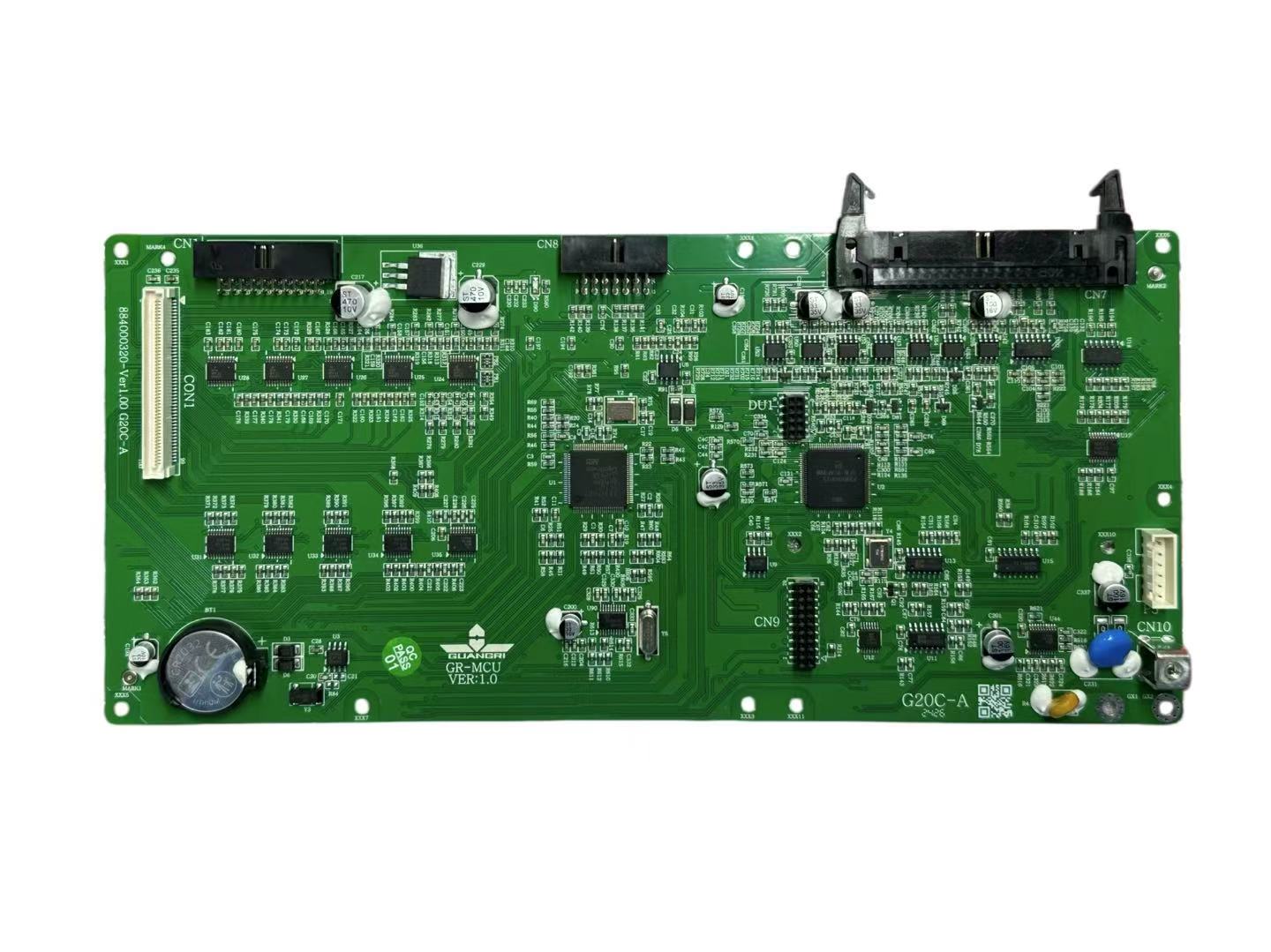

Industrial Main Control Board PCBA

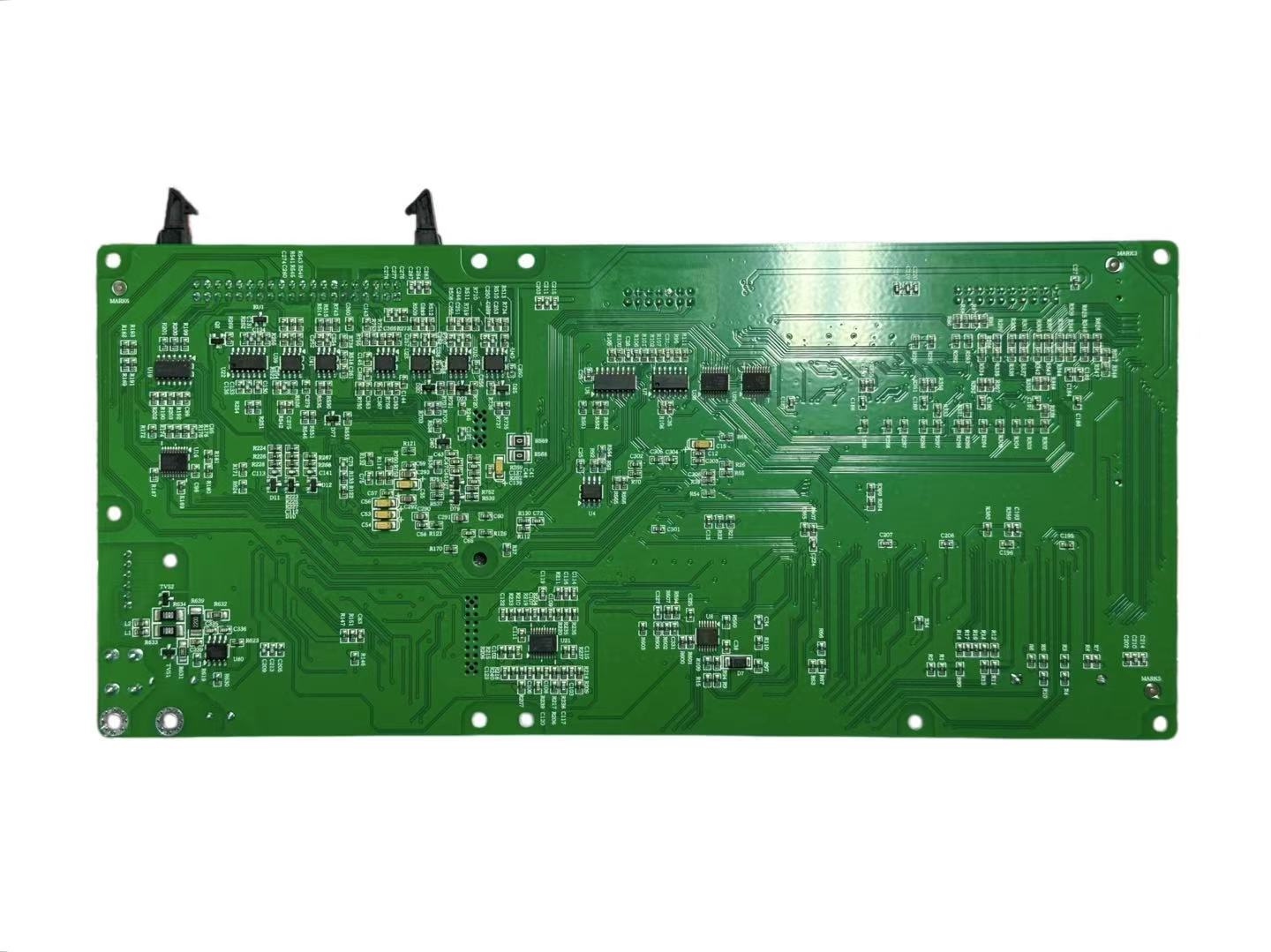

The Industrial Main Control Board PCBA is a high-density control platform for centralized equipment management, multi-channel signal processing, peripheral interfacing, and system-level data exchange. The board sits on an FR-4 PCB with parts mounted on both sides. It carries a main MCU, multiple control and driver ICs, an RTC backup battery, interface protection circuits, power-conditioning parts, and numerous high-pin-count connectors inside a rectangular industrial PCB build.   The main control section gives centralized logic processing for connected equipment, while multiple peripheral circuits handle signal acquisition, output control, and communication between different functional modules. An onboard RTC circuit with a backup battery provides a real-time clock function for time retention, scheduling, event recording, or time-dependent equipment operation. Multiple driver and interface circuits sit across the board to support external sensors, actuators, sub-boards, and other sys…
