LED Control Board PCBA

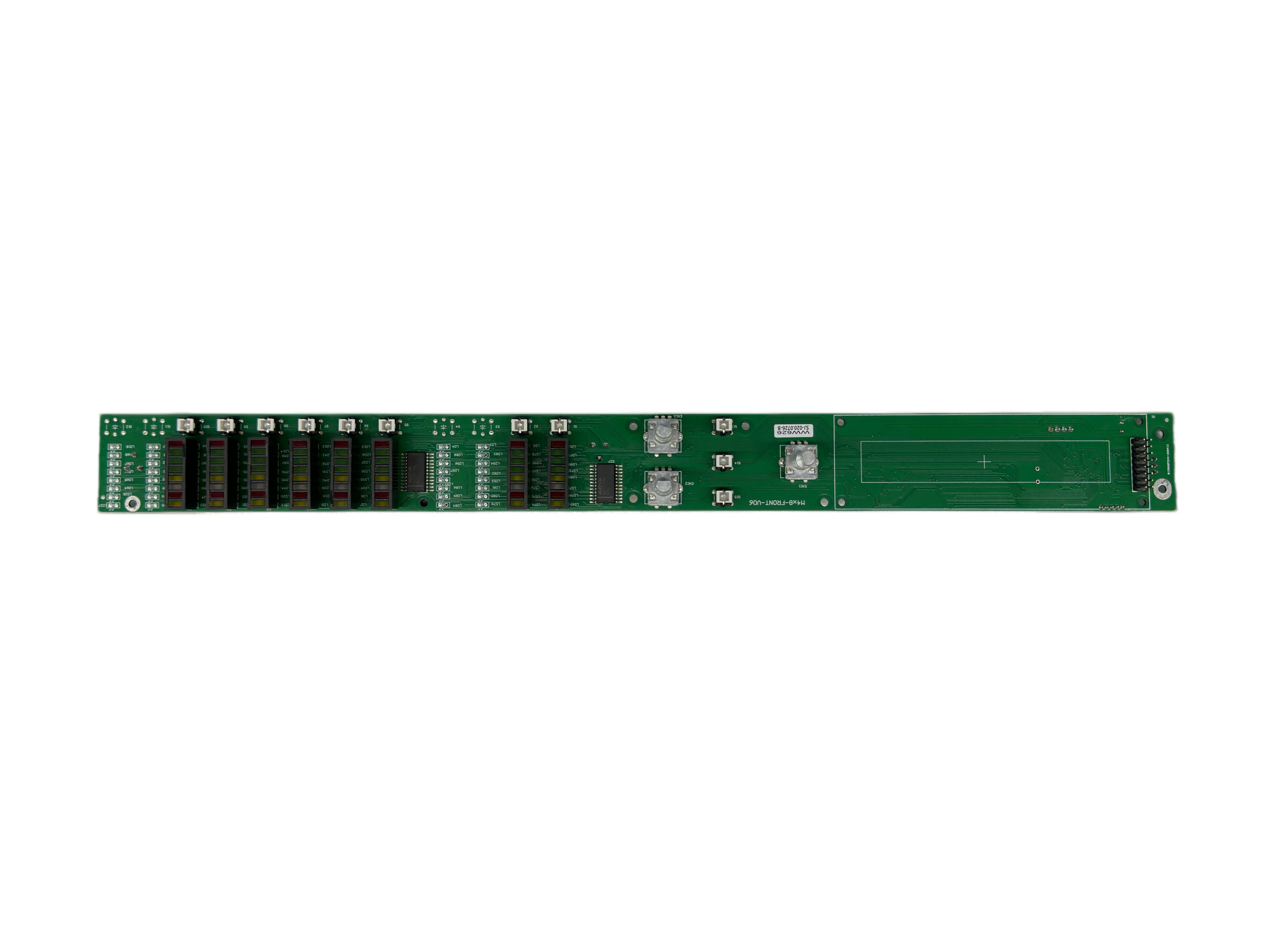

This LED control board is designed for industrial equipment that requires multi-channel status indication, a numerical display, and direct operator control. Its long, narrow PCB includes several red LED numerical displays, rotary controls, tactile buttons, and terminal connections. This setup gives operators a compact way to monitor equipment status and adjust functions from one location. The board is well-suited for control panels that need to display and manage several channels or operating parameters on a single board. The board uses an FR-4 fiberglass PCB with a green solder mask and includes both surface-mounted and through-hole components. LED display modules are arranged along the board, while rotary controls and tactile buttons allow for direct operator input. Terminal blocks and connectors manage external wiring and make it easy to expand the interface. These features let the board connect to other parts of an industrial control system as needed.   The PCBA is assembled with…
