Steel PTFE Composite Anticorrosive Level Gauge

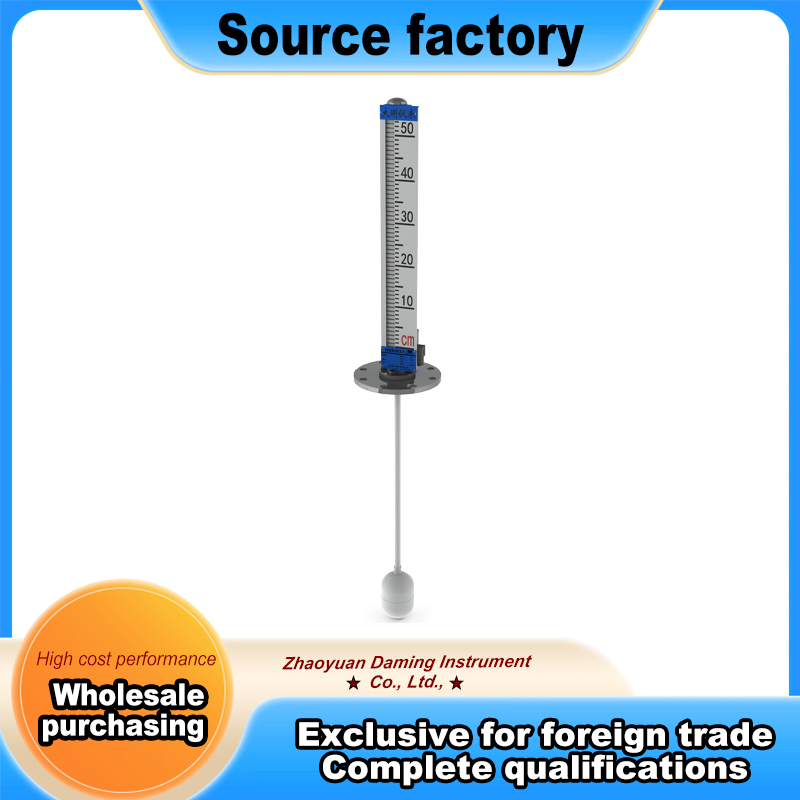

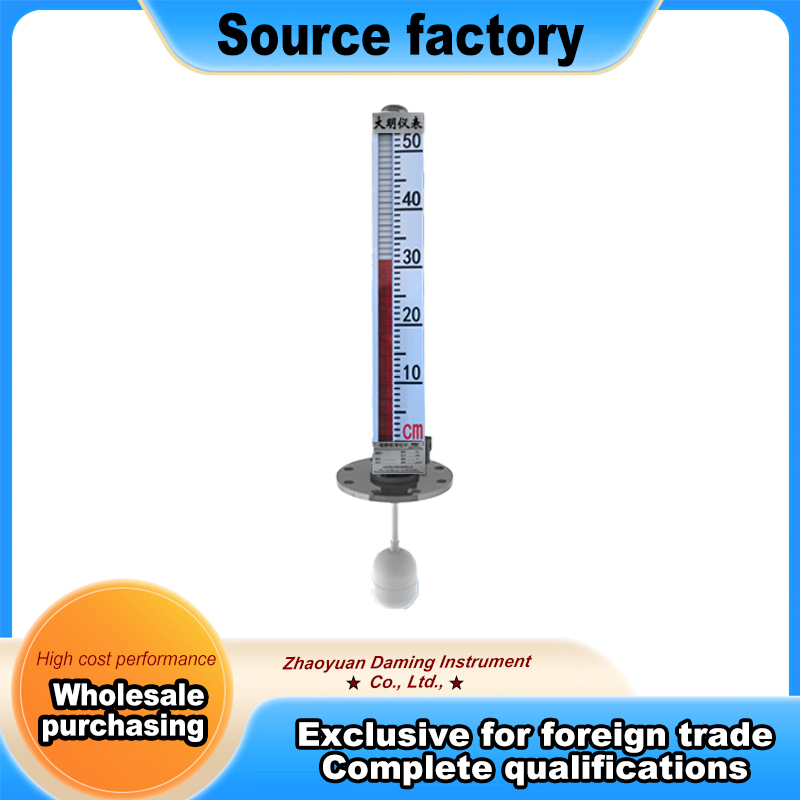

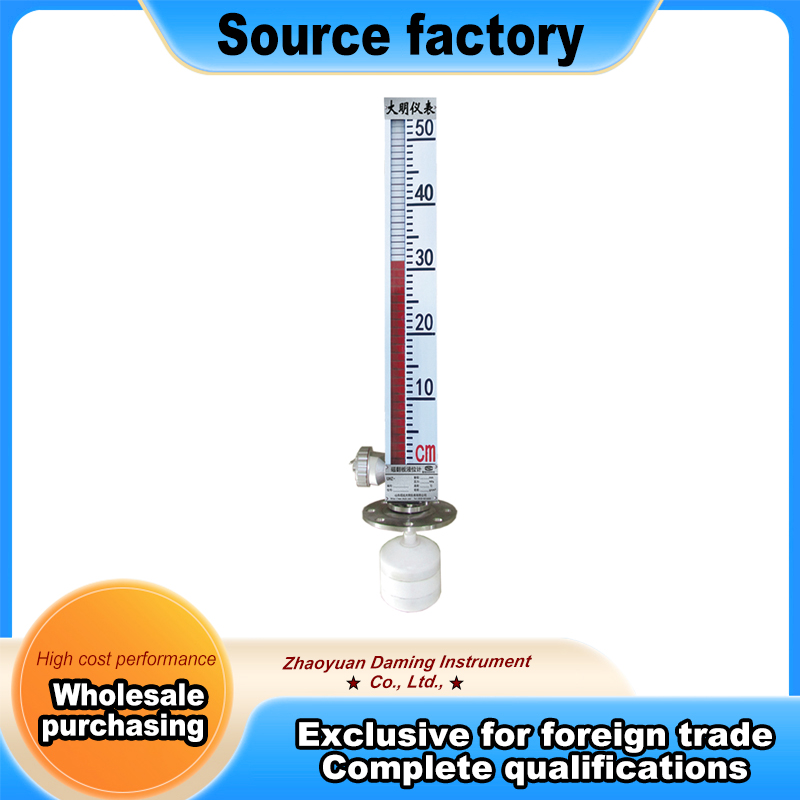

Top Mount PTFE Lined Magnetic Level Gauge The UHZ Series Magnetic Level Gauge includes this top mount PTFE lined magnetic level gauge. The unit mounts on the top of the tank through a flange. A PTFE coated magnetic float sits inside the PTFE lined guide rod. The float rises and falls with the liquid level. The float magnetic field turns the red and white flags outside the rod. The red flags show the liquid level position. The white flags show the area above the liquid. This gives a clear direct reading with no power needed. The housing is made from stainless steel. The inner wall has a PTFE lining. The stainless steel gives pressure resistance and impact strength. The PTFE lining provides excellent chemical resistance. The combination handles strong acids strong alkalis and organic solvents. The Float Level Sensor uses a similar principle for general tank use. For top only access corrosive tanks this top mount PTFE type works well. The magnetic coupling keeps the process liquid separa…
