Steam Jacket Magnetic Level Gauge

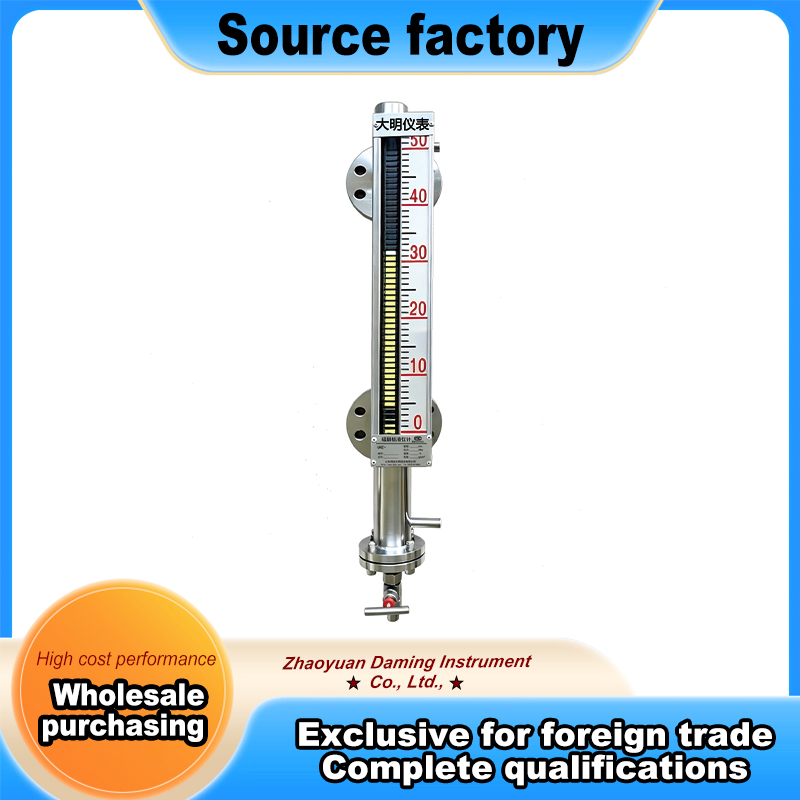

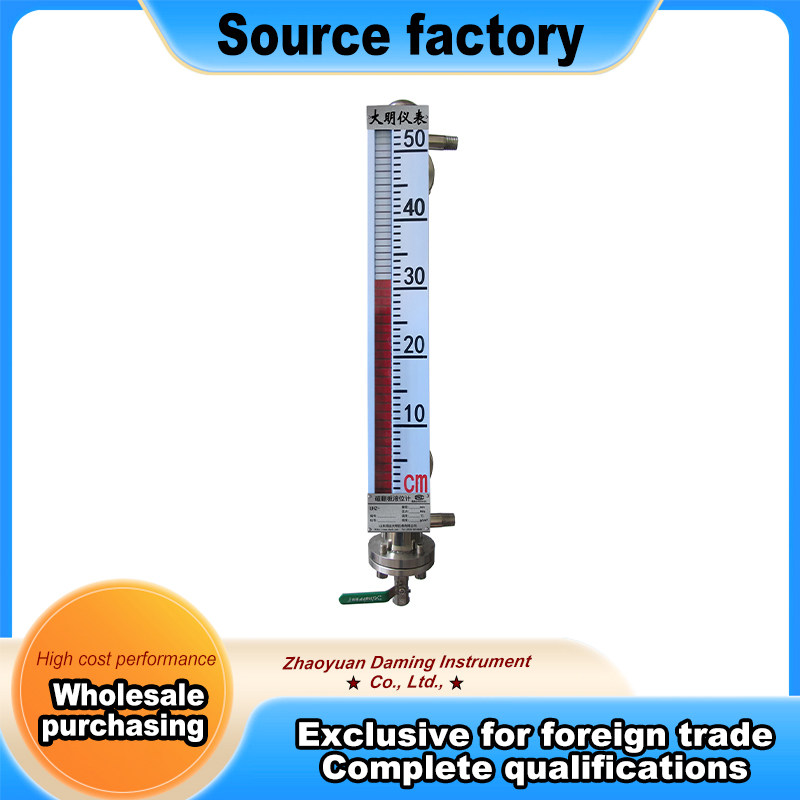

Steam Jacket Magnetic Level Gauge The UHZ Series Magnetic Level Gauge includes this steam jacket magnetic level gauge. The unit is side mounted on the tank wall. A magnetic float sits inside the stainless steel main tube. The float rises and falls with the liquid level. The float magnetic field turns the red and white flags outside the tube. The red flags show the liquid level position. The white flags show the area above the liquid. This gives a clear direct reading with no power needed. The unit has an outer steam jacket layer around the main tube. Steam or hot water flows through the jacket. The heat transfers to the liquid inside the tube. This prevents the liquid from freezing or solidifying. The housing and wetted parts are made from 304 or 316L stainless steel. The double layer construction gives good strength and pressure resistance. The Float Level Sensor uses a similar principle for general tank use. For solidifying media this steam jacket type keeps the liquid flowing. The…
