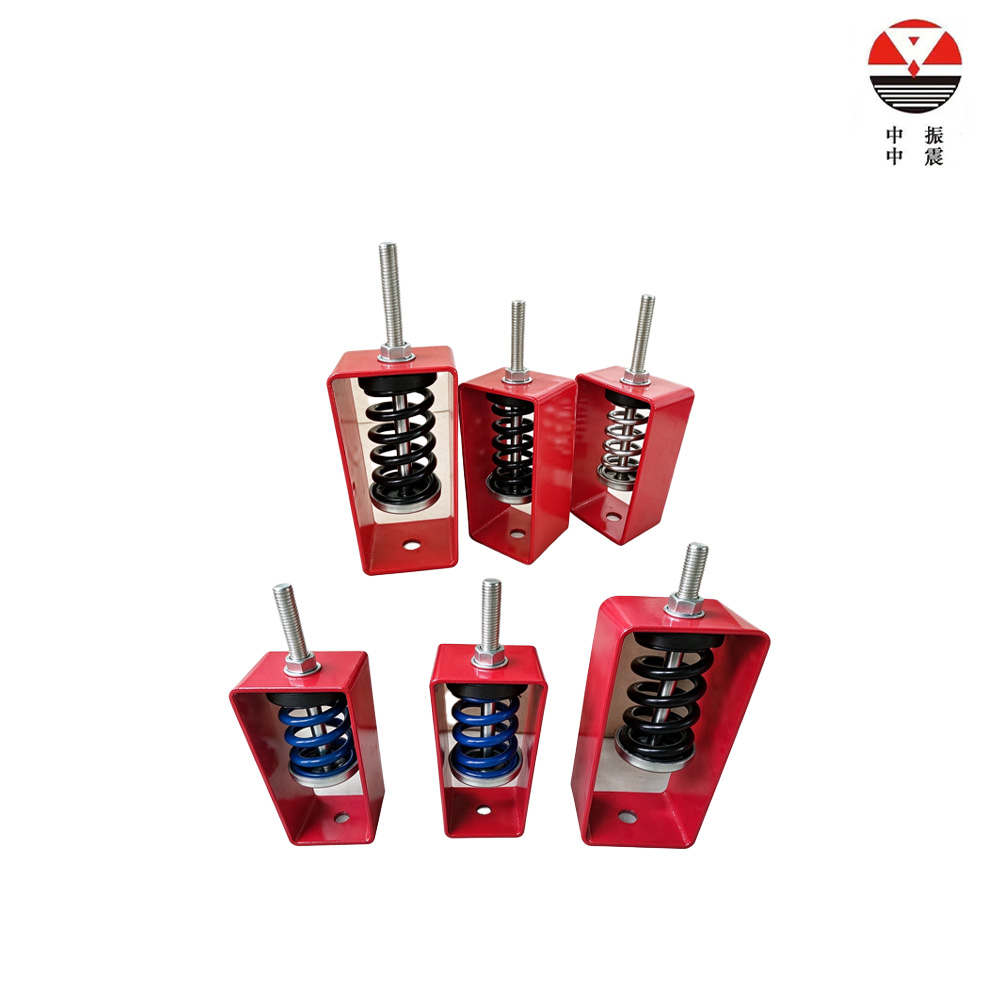

XHS Type Hanging Spring Vibration Isolator

Product Name XHS Type Hanging Spring Vibration Isolator Product Description Hanging mechanical equipment often transfers solid borne vibration to ceiling and building structures, creating annoying noise and structural damage. The XHS Type Hanging Spring Vibration Isolator is a versatile Spring Vibration Isolator for suspended machinery. Compared with ordinary Damping Vibration Damper, it features high damping and low natural frequency to block solid sound transmission efficiently. Product Parameter Item XHS-0 XHS-1 XHS-2 XHS-3 XHS-4 XHS-5 XHS-6 XHS-7 XHS-8 XHS-9 XHS-10 XHS-11 XHS-12 XHS-13 Load Range (kg) 3–10 10–20 20–30 30–50 50–80 80–120 120–160 160–200 200–240 240–300 300–450 450–650 650–1000 1000–1500 H(min) 80 80 123 126 130 150 155 200 200 200 200 200 200 200 A 40 60 60 60 63 70 70 100 100 100 100 100 100 100 B 35 35 45 50 55 60 65 70 75 75 80 80 80 80 b(mm) 11 11 10.5 13 13 13 13 19 19 19 20 20 20 20 M(mm) 8 8 8 10 10 12 12 14 14 14 14 16 20 20 a(mm) 1.2 1.2…
