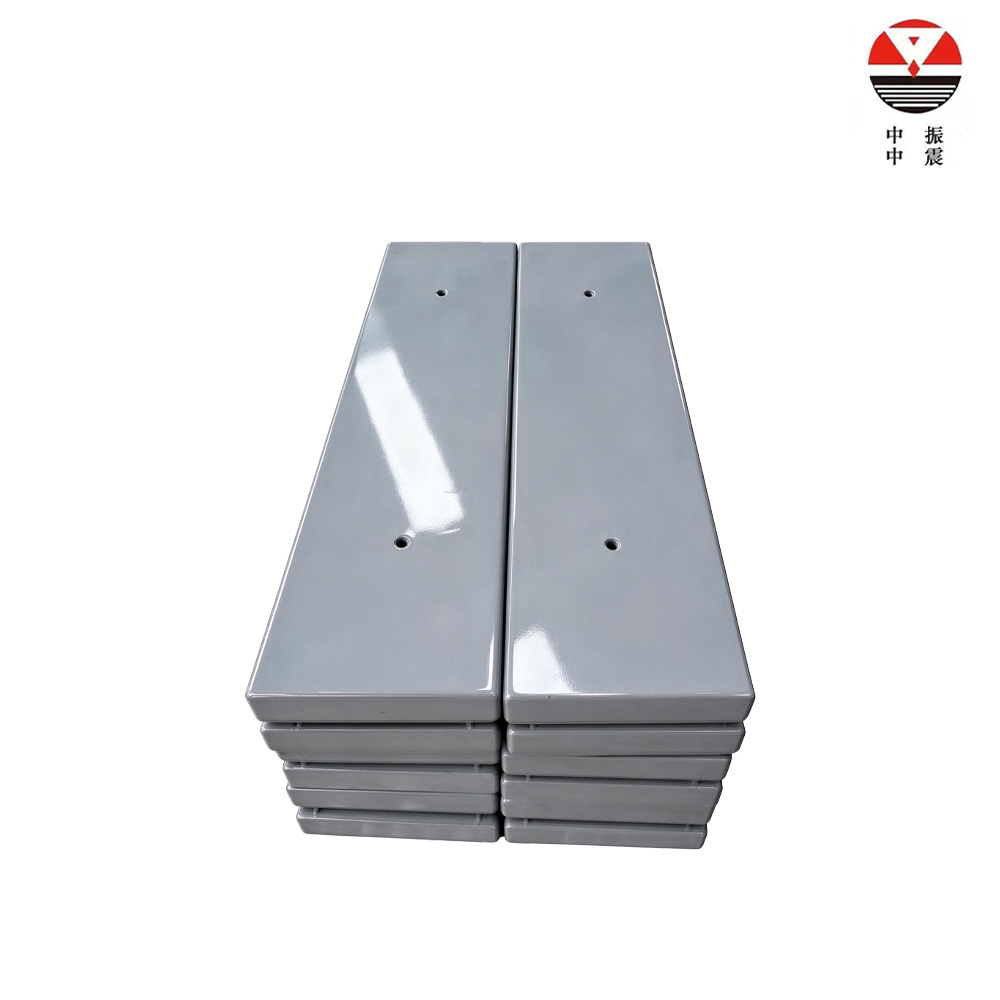

XD Type Matrix Vibration Isolator

Product Name XD Type Matrix Vibration Isolator Product Description Heavy industrial vibration may damage transformer shell and disrupt surrounding equipment operation. The XD Type Matrix Vibration Isolator is a heavy-duty Spring Vibration Isolator designed for large load machinery. Unlike conventional Damping Vibration Damper, it adopts Hermite matrix spring arrangement, effectively avoiding resonance and delivering stable vibration reduction for heavy industrial equipment. Product Parameter Model Transformer Model Vertical Stiffness (kg/mm) Load Range (kg) Overall Dimension (mm) - A Overall Dimension (mm) - B Overall Dimension (mm) - H XD-315 315Kva 32 720–880 900 300 130 XD-400 400Kva 48 1100–1280 900 300 130 XD-500 500Kva 48 1100–1280 1200 300 130 XD-630 630Kva 64 1280–1680 1200 300 130 XD-800 800Kva 80 1800–2100 1200 300 130 XD-1000 1000Kva 88 2100–2350 1200 300 130 XD-1250 1250Kva 96 2200–2450 1200 300 130 XD-1600 1600Kva 112 2650–2950 1200 300 130 XD-2000…
