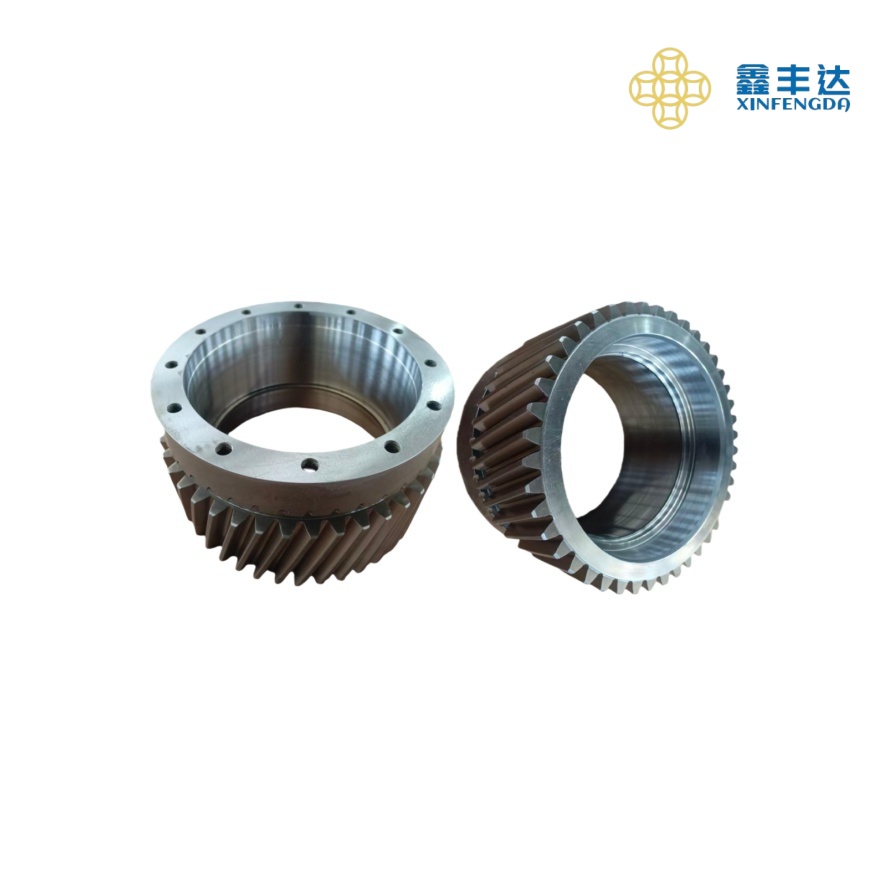

Versatile Adaptation Driven Gear

As a key force-bearing component of the power transmission system, the driven gear cooperates with the driving gear to realize power transmission and speed conversion, and adapts to heavy-load transmission scenarios with three core advantages. It has outstanding load resistance performance, using 35CrMo alloy structural steel, after overall quenching and tempering + tooth surface carburizing and quenching treatment, the tooth surface hardness reaches HRC56-60, the tooth root bending strength is increased by 30%, and it can withstand the continuous action of 1.2 times the rated load for a long time. The transmission torque is large, through optimizing the tooth profile overlap (≥1.6) and tooth width design, the torque transmission efficiency is stably above 95%, which can efficiently undertake the high-torque power input by the driving gear. It has good adaptability, adopts the modular design concept, can adjust the number of teeth, modulus and mounting holes according to the needs of…
