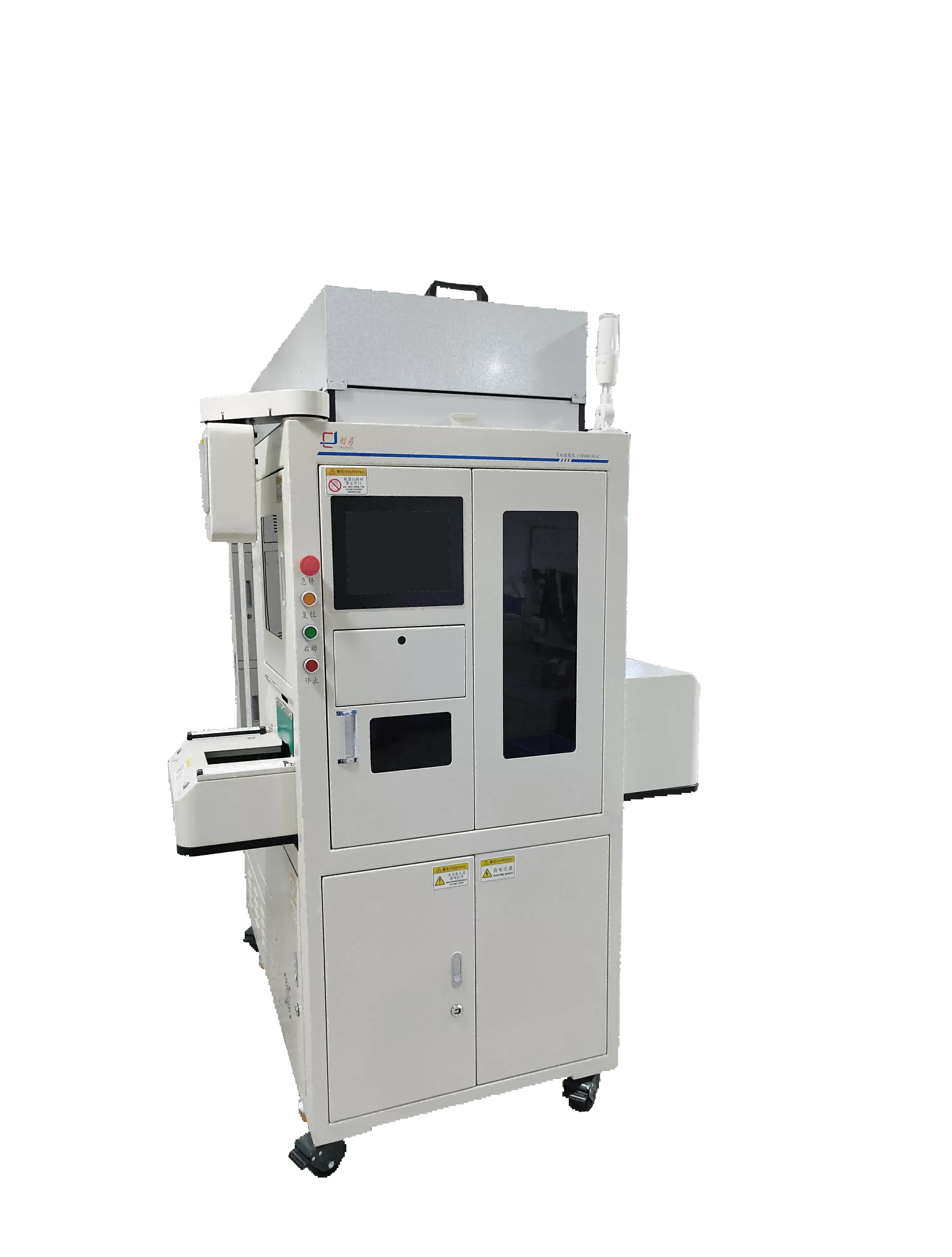

3G(E) Sheet & Roll Film Laminating Machine

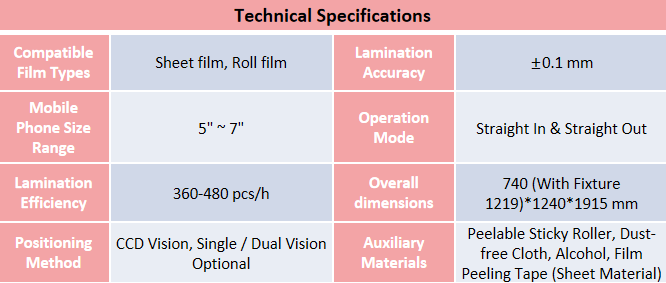

Fully Automatic CCD Visual Protective Film Laminating Machine 3G(E) laminating machine automatically attaches HD film, shipping protective film and process protective film to mobile touch screens, phone housing flat surfaces and other digital products. It adopts CCD to capture outlines of film and workpiece, offering stronger adaptability for various films. The equipment upgrades performance and functions based on previous generations, solving low efficiency and poor consistency of manual lamination. Single vision and dual vision configurations are optional to meet diverse production demands.   Core Parameters Compatible Film Types Sheet film, Roll film Lamination Accuracy ±0.1 mm Mobile Phone Size Range 5" ~ 7" Operation Mode Straight In & Straight Out Lamination Efficiency 360-480 pcs/h Overall dimensions 740 (With Fixture 1219)*1240*1915 mm Positioning Method CCD Vision, Single / Dual Vision Optional Auxiliary Materials Peelable Sticky Roller, Dust-free Cloth, Alcohol,…
