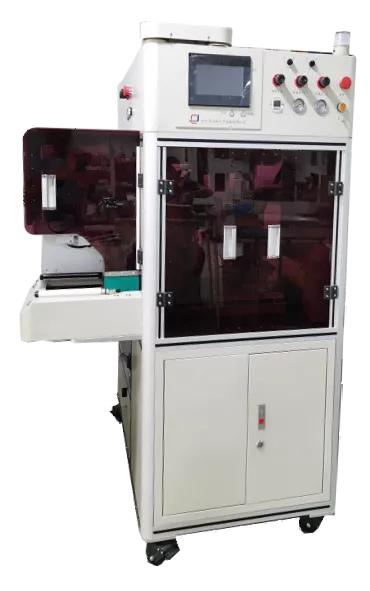

3CF Sheet & Roll Film Laminating Machine

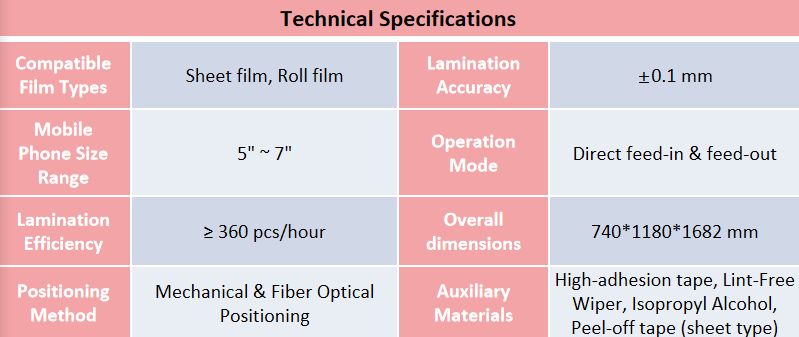

Automatic Film Laminating Machine With Cleaning Function 3CF laminating machine realizes automatic lamination of HD film, shipping protective film and process protective film for mobile touch screens and flat phone housings. It supports mechanical positioning, optical fiber positioning or combined positioning to adapt various materials. Equipped with integrated sticky cleaning and alcohol wiping function, screen cleaning and film lamination are completed in one station to save labor, effectively replacing inefficient manual sticking and improving lamination quality.   Core Attributes Compatible Film Types Sheet film, Roll film Lamination Accuracy ±0.1 mm Mobile Phone Size Range 5" ~ 7" Operation Mode Direct feed-in & feed-out Lamination Efficiency ≥ 360 pcs/hour Overall dimensions 740*1180*1682 mm Positioning Method Mechanical & Fiber Optical Positioning Auxiliary Materials High-adhesion tape, Lint-Free Wiper, Isopropyl Alcohol, Peel-off tape (sheet type)   Prod…
