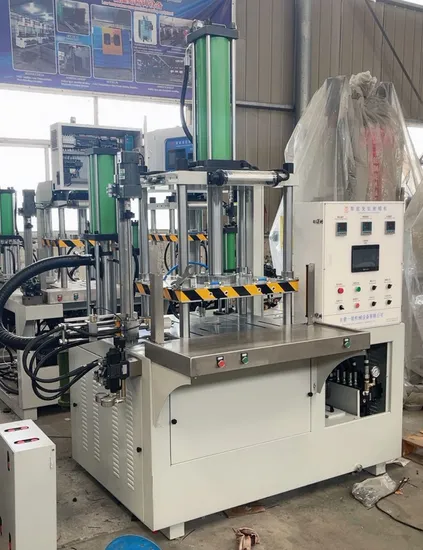

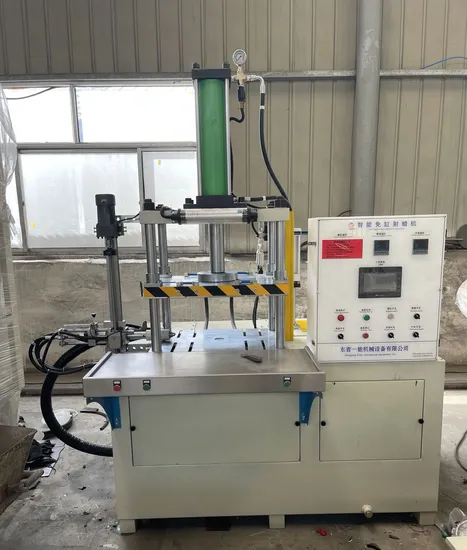

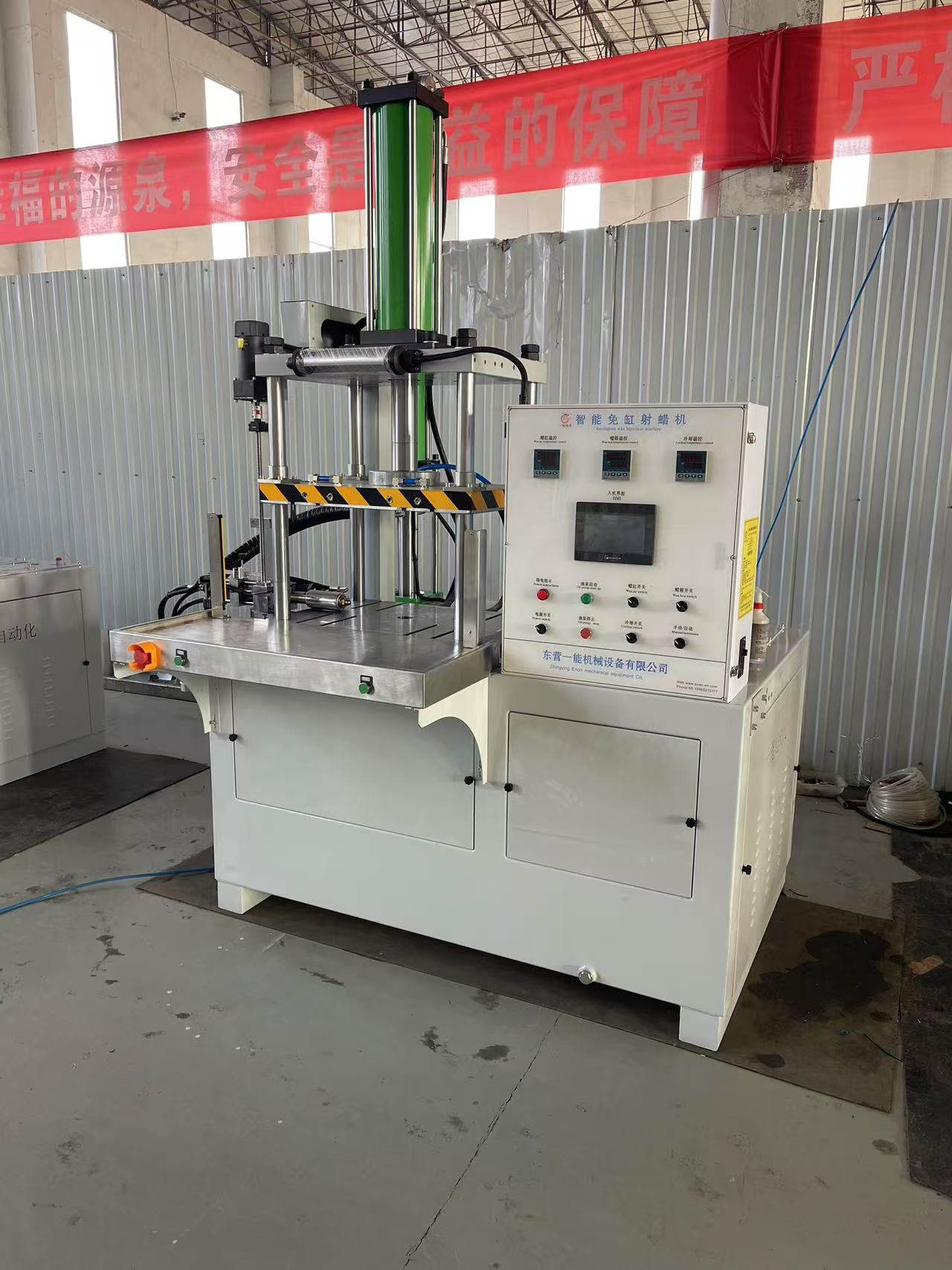

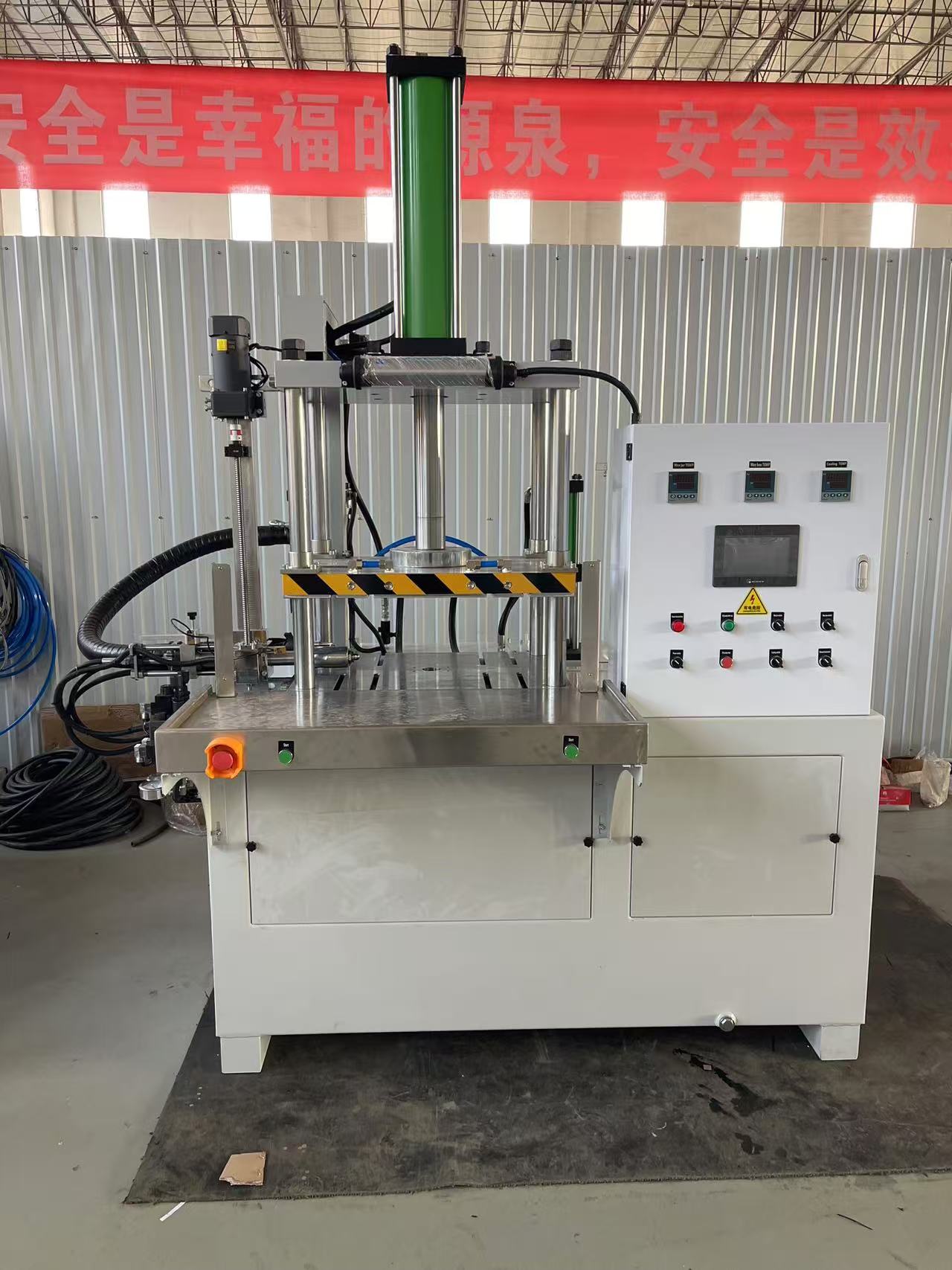

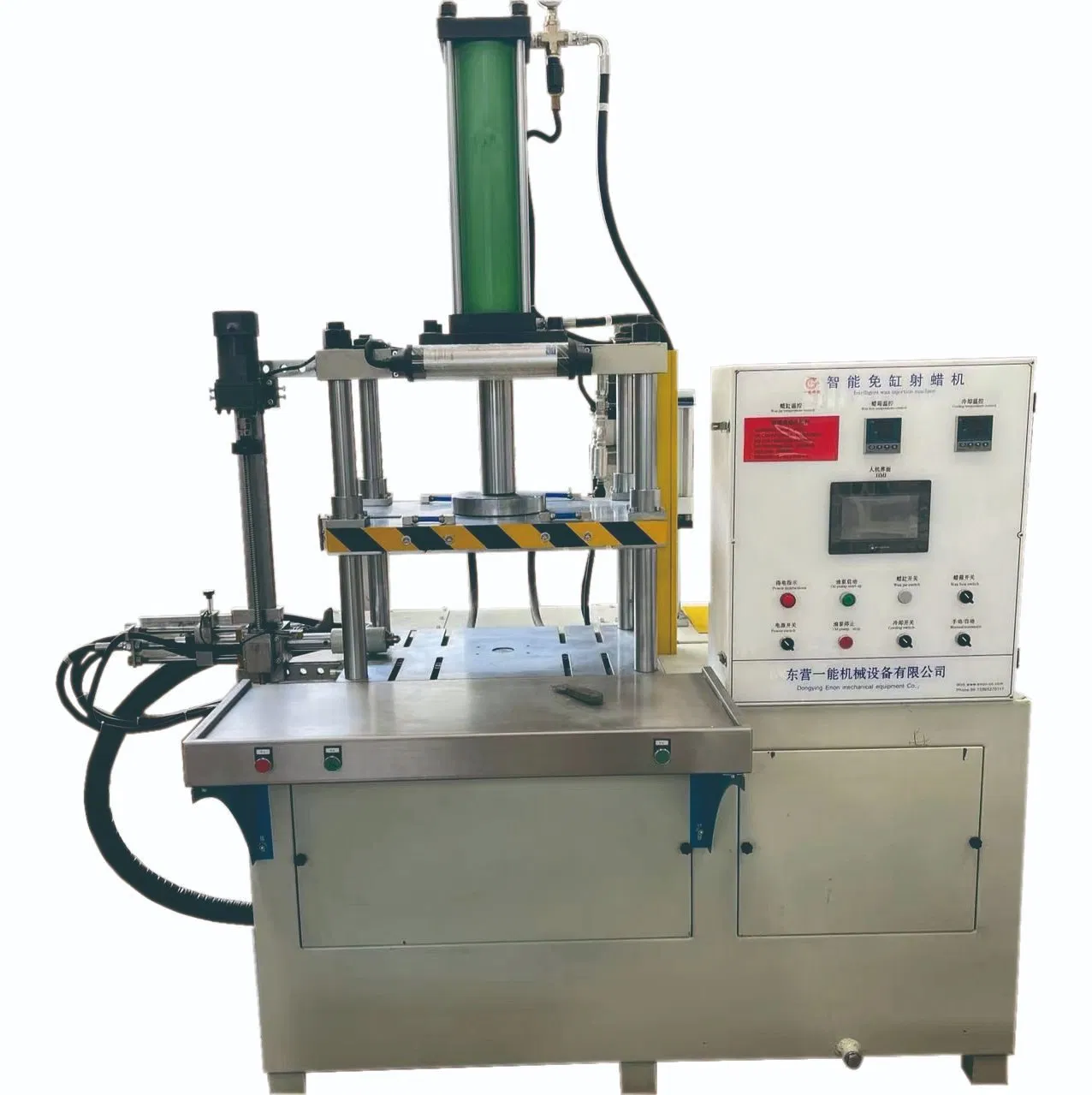

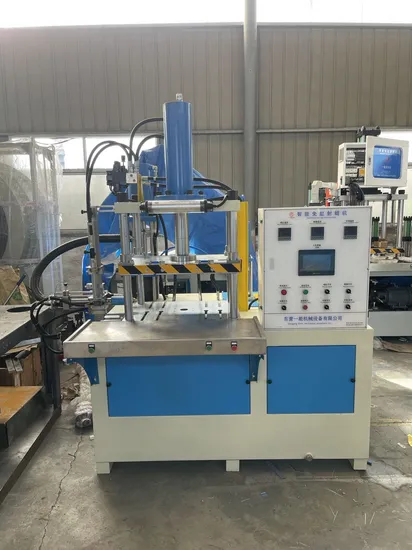

Single-station investment casting wax injection machine

Description 1. Technical parameters Specifications and models YN-DMZ-16LB-Y YN-DMZ-20LB-Y YN-DMZ-25LB-Y Mold clamping force 16T 20T 25T Mold usage space(Depth×Width ×Height) 520×570×600mm 550×610×600mm 650*650*600 Pressure plate form Four-column guide Four-column guide Four-column guide Mold clamping stroke (A) 500mm 500mm 700mm Maximum opening distance (B) 600mm 600mm 600mm Minimum opening distance (C) 100mm 100mm 100mm Pneumatic core pulling 4 groups start core pulling 4 groups start core pulling 4 groups start core pulling Maximum amount of wax injected in one time(wax cylinder) 5L 5L 7.5L 2. Product Description1. This wax injection machine is a four-column vertical die plate machine design with a single station. It adopts hydraulic mold closing and thermal oil heating as the heat preservation source, making the entire working system relatively stable, safe and reliable:2. Operation method: manual start to prevent accidental hand injuries, and at th…
