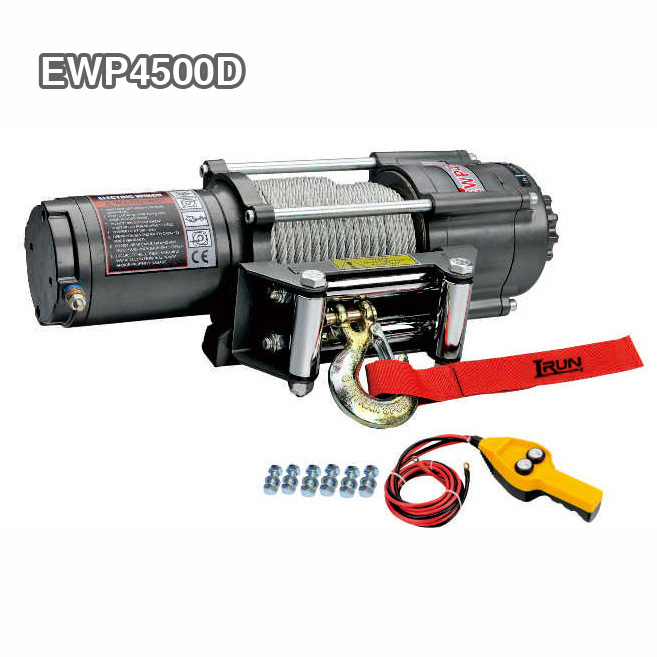

Powerful UTV Winches 4500lbs 4500 lbs Electric UTV Winch Item No.EWP4500D Features:1. Free steel reducer gear2. Patent clutch structure3. Free spooling clutch4. Automatic screw cone braking action5. DC 12V or DC 24V Power drive optional6. High crrunt working switch control directly7. ATV handlebar switch control8. Control box detchable fixing optional9. Control box separate fixing optional10. Remote control through control box and switch11. Wireless remote control available EWP4500 SPECIFICATION   Rated line pull 4500 lbs (2041 kgs) Motor: permanent magnet 12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW/1.4hp   24V:Input: 2.6kW / 3.5hp; Output: 1.2kW/1.5hp Gear reduction ratio 166:1 Cable (Dia.× L) Ø 15/64″×47.6′ (Ø6mm×14.5m) Drum size (Dia.× L) Ø 2.0″×4.9″ (Ø50.4mm×125mm) Mounting bolt pattern 6.6″×3″ (168mm×76.2mm)4-M8 Pull Speed Amperes Volts First layer Line Pull And Rope Capacity In Layer Line Pull Ibs (kgs) Line Speed Ft/min (m/min) Current A Layer of cable…
