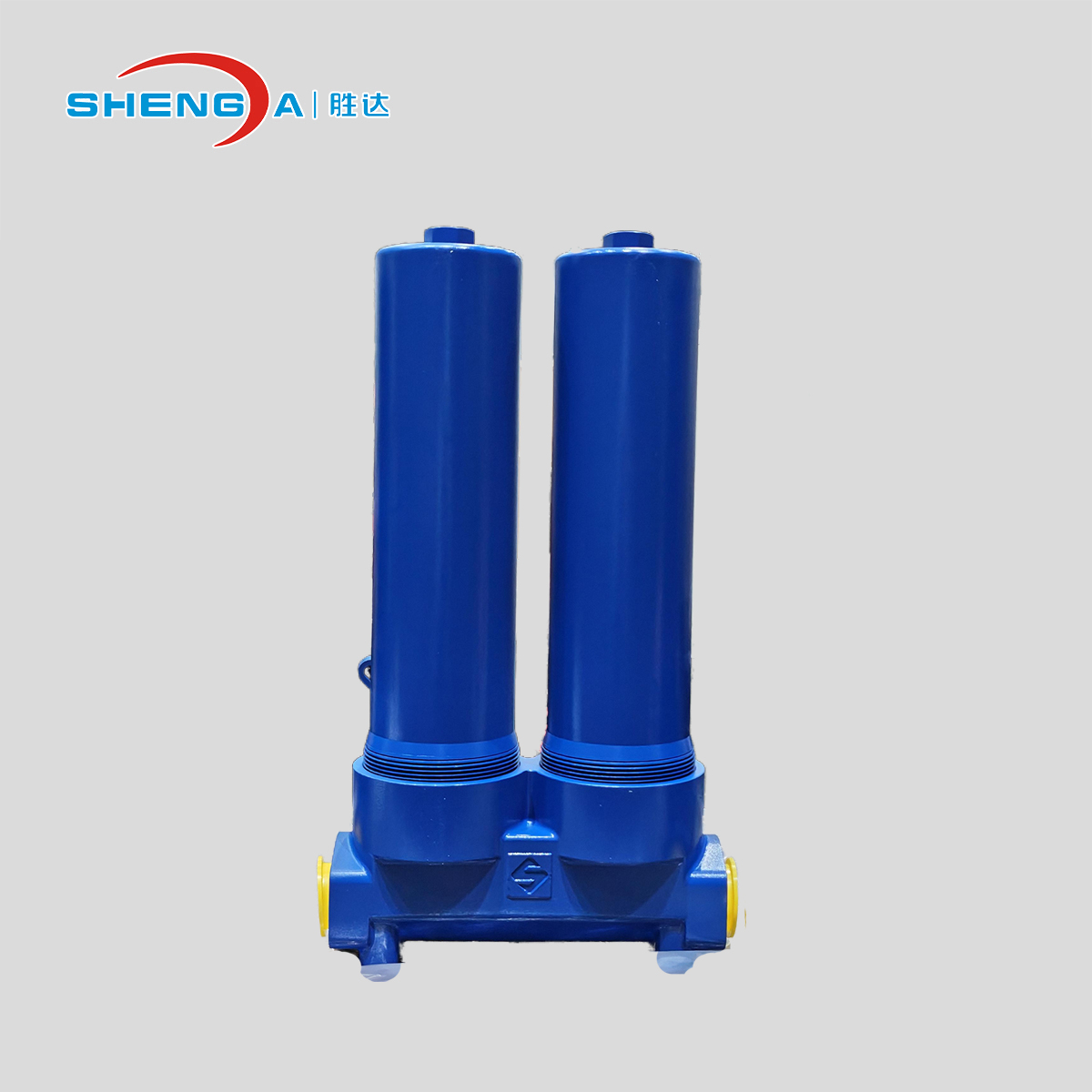

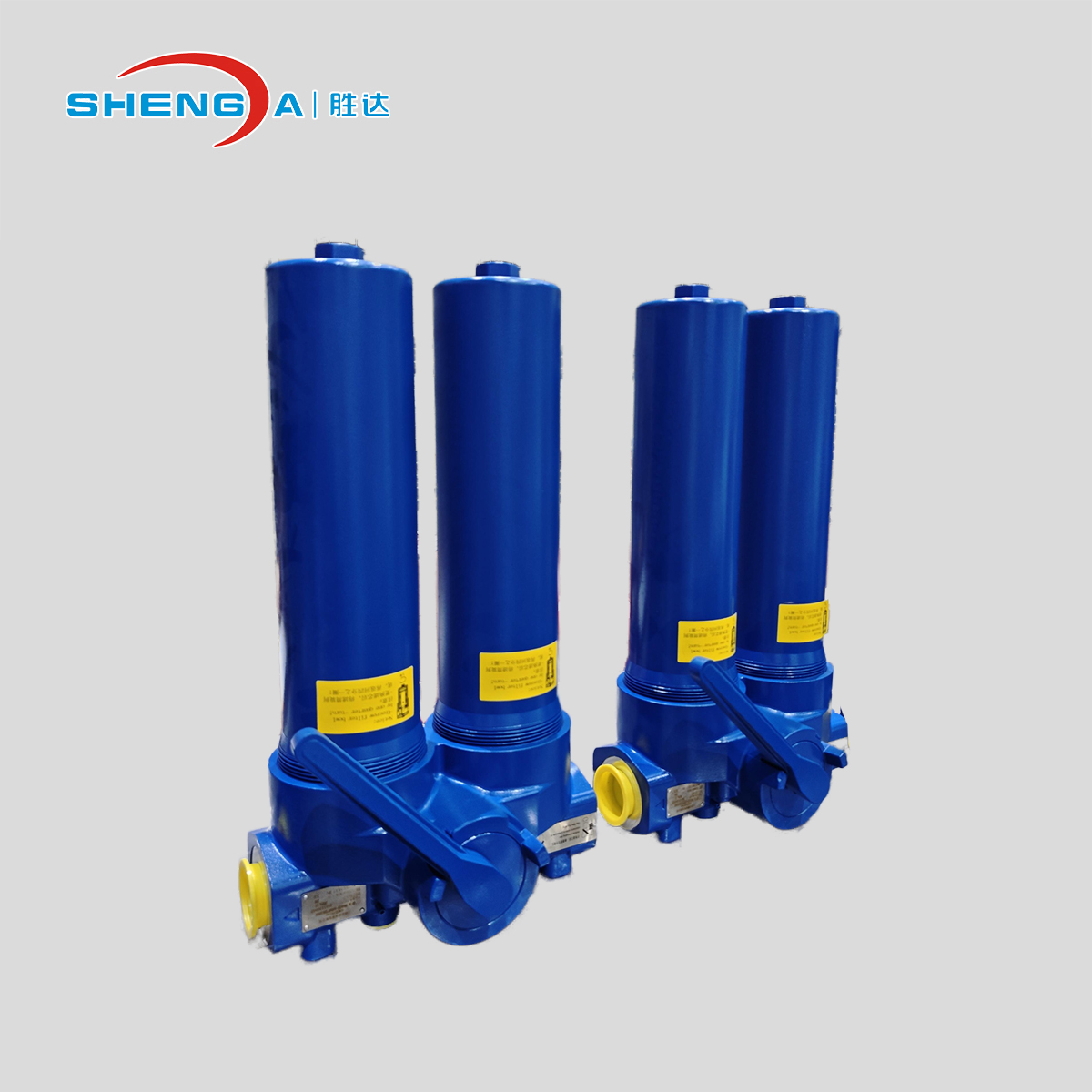

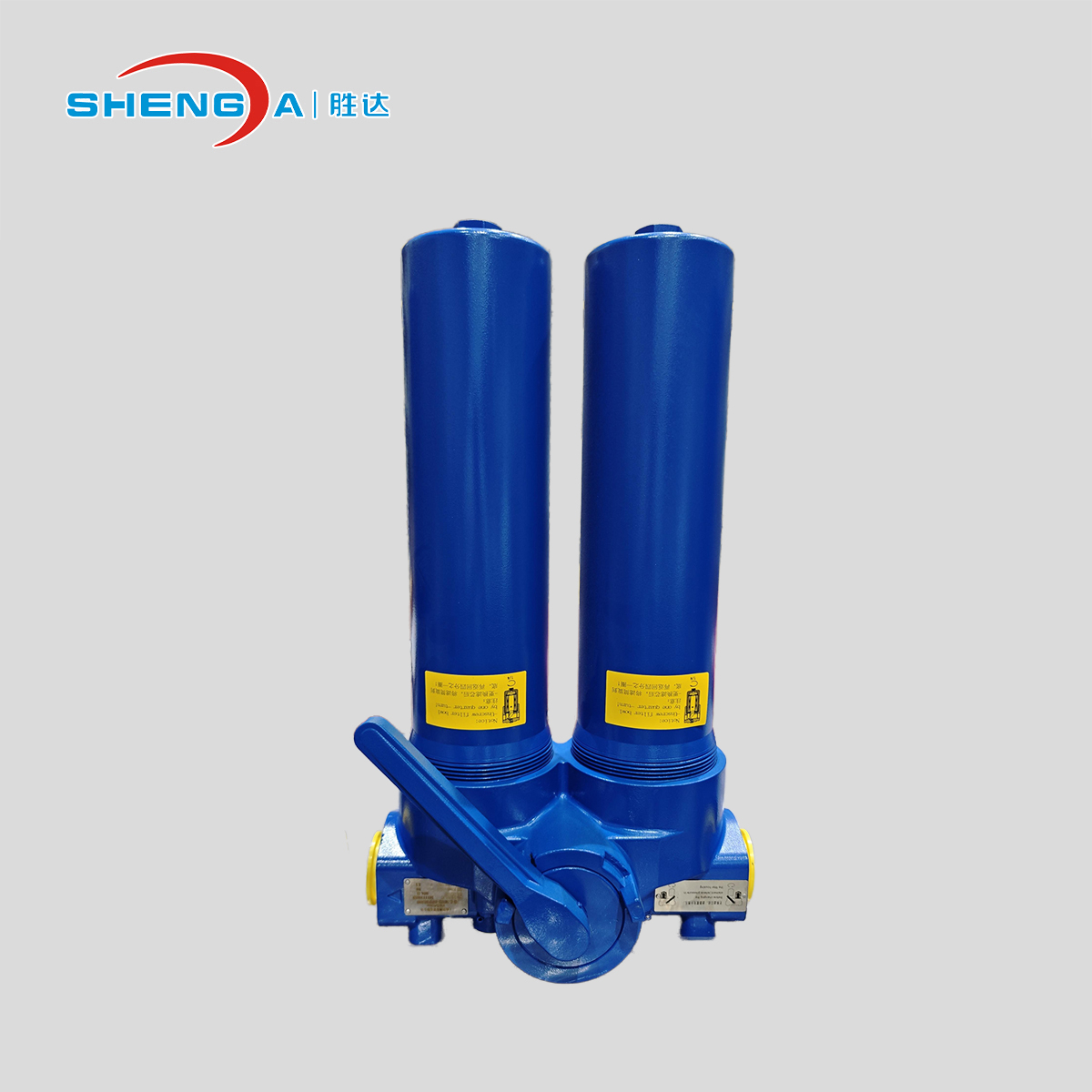

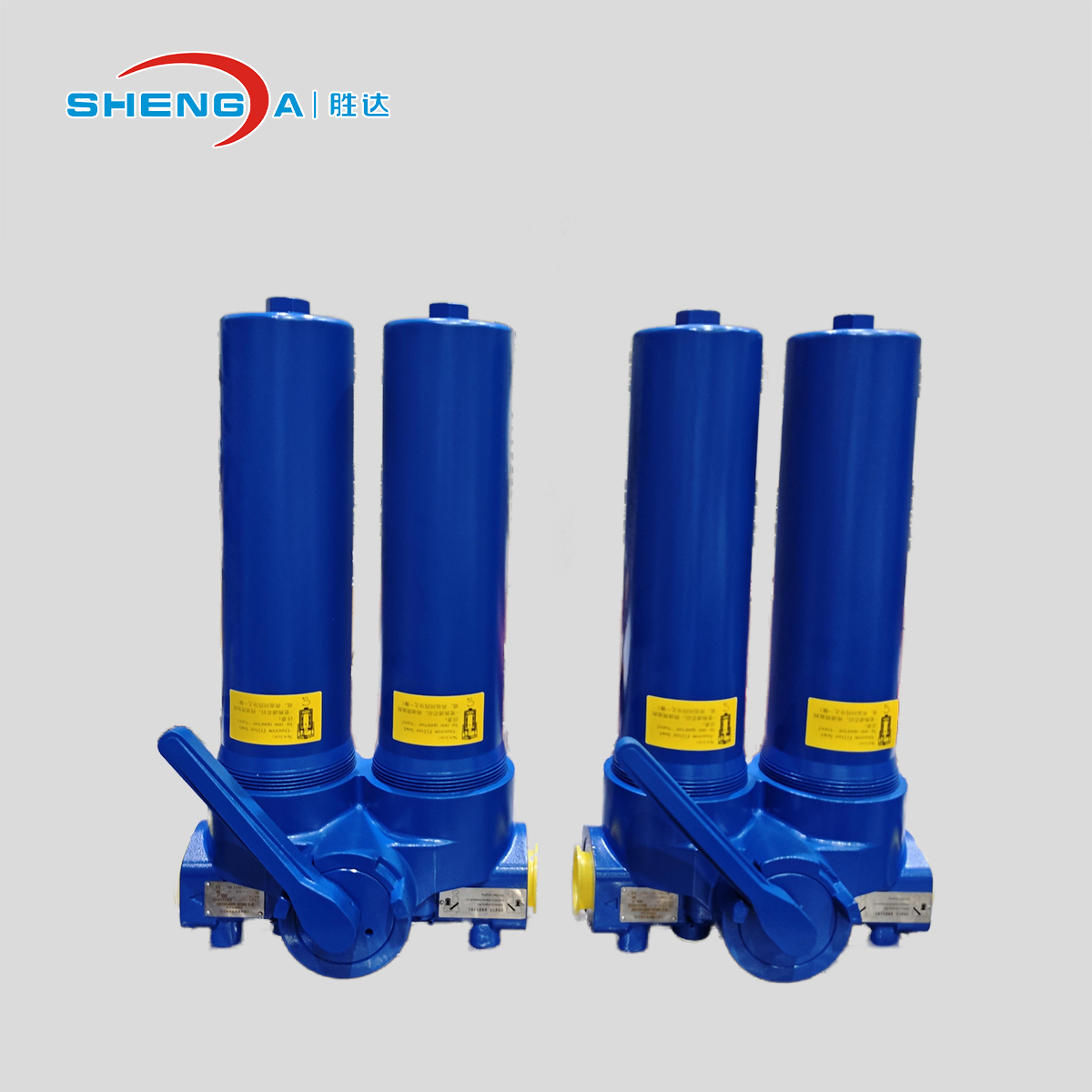

Double Housing Inline Oil Filter FLND

The FLND series filters are high-performance inline duplex filters designed for hydraulic systems, providing core filtration solutions. Compliant with DIN 24550 standards, the series offers flow rates from 160 to 400 L/min and a maximum working pressure of 63 bar, suitable for hydraulic oil, lubricating oil, and other fluids. --DIN 24550 --up to 400 L/min --up to 25 bar --material: aluminum 1.Technical Specification 1.1 Filter Housing Construction SDFLND Duplex inline filter consists of a filter head with built-in change-over valve and screw-in filter bowls. Standard filter is without bypass valve, but with plugs for vent and drain when delivery. 1.2 Filter Element Filter elements are available with the following pressure stability values BN/HC:20bar W/HC:20bar 2.General Mounting: as inline filter Temperature range: -30°C~+100°C Pressure setting of clogging indicator: ΔPa=5bar-10%(others on request) Pressure setting of bypass valve: ΔPo=7bar+0.5bar (others on request) 3. Applicat…
