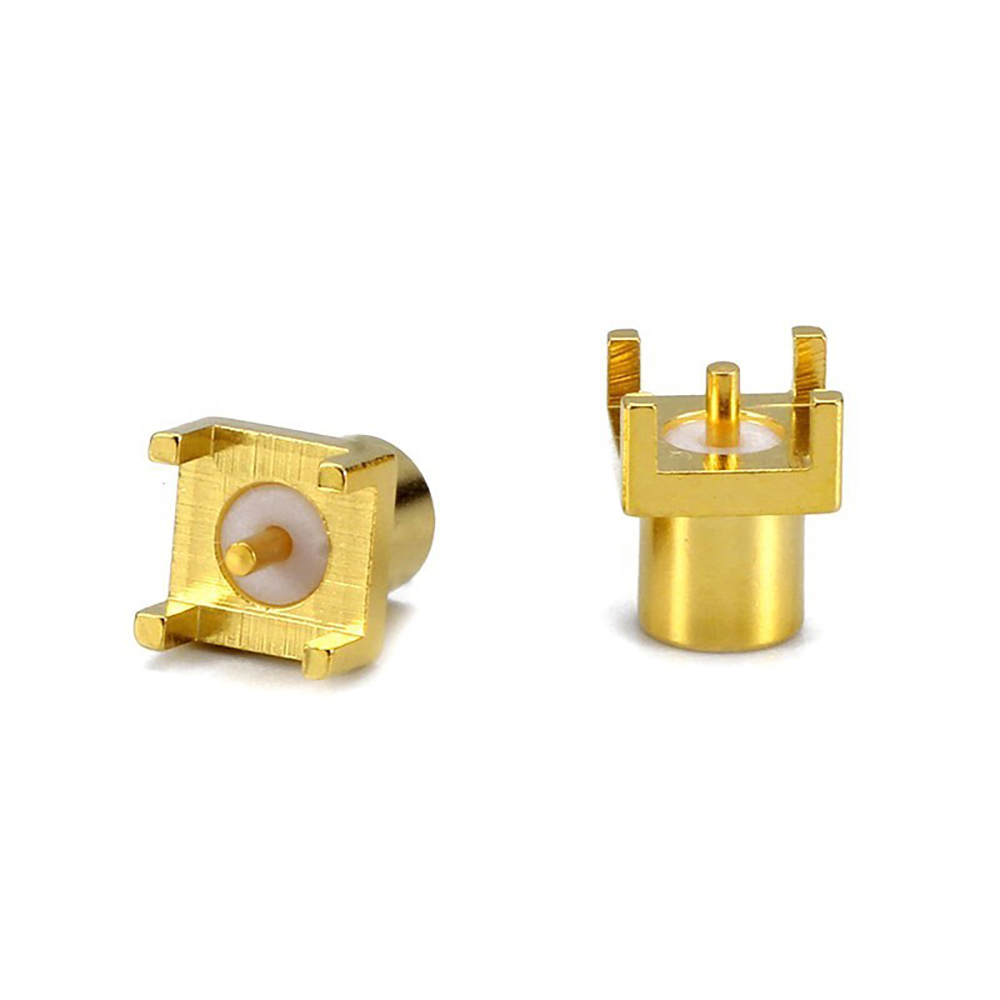

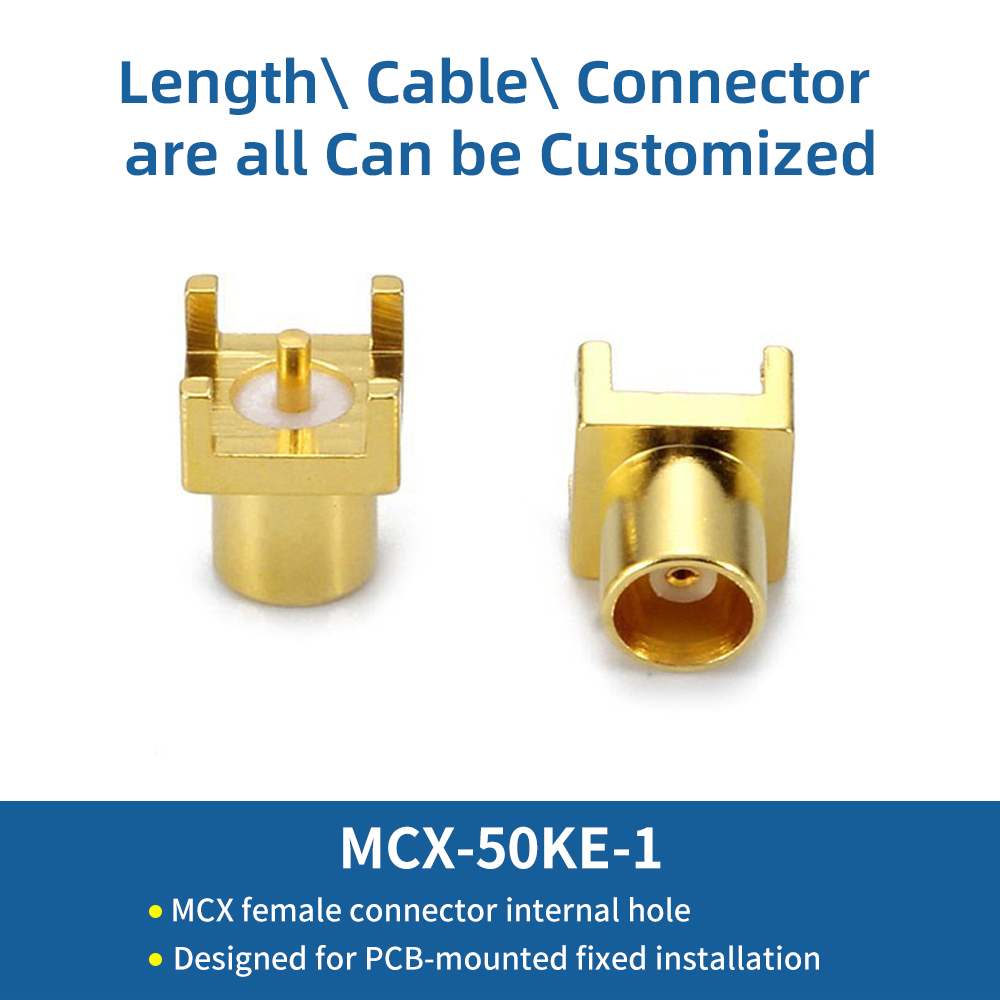

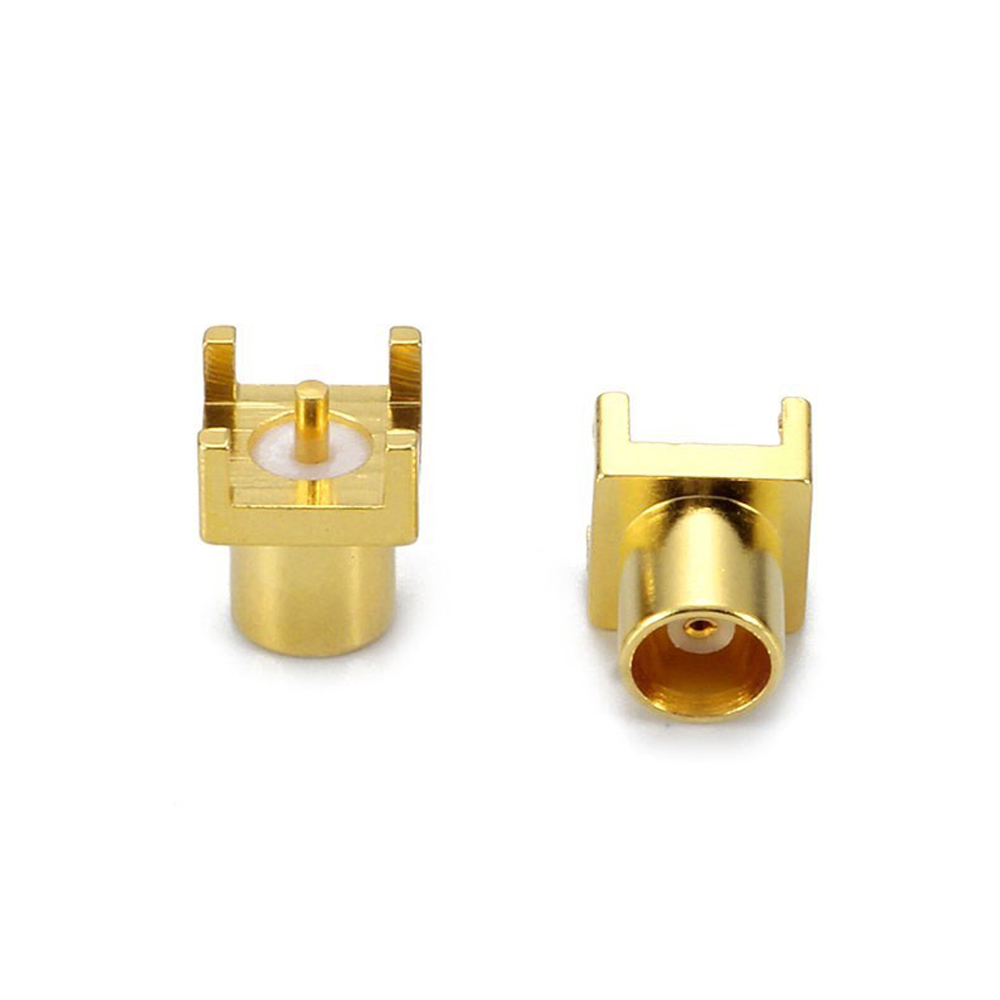

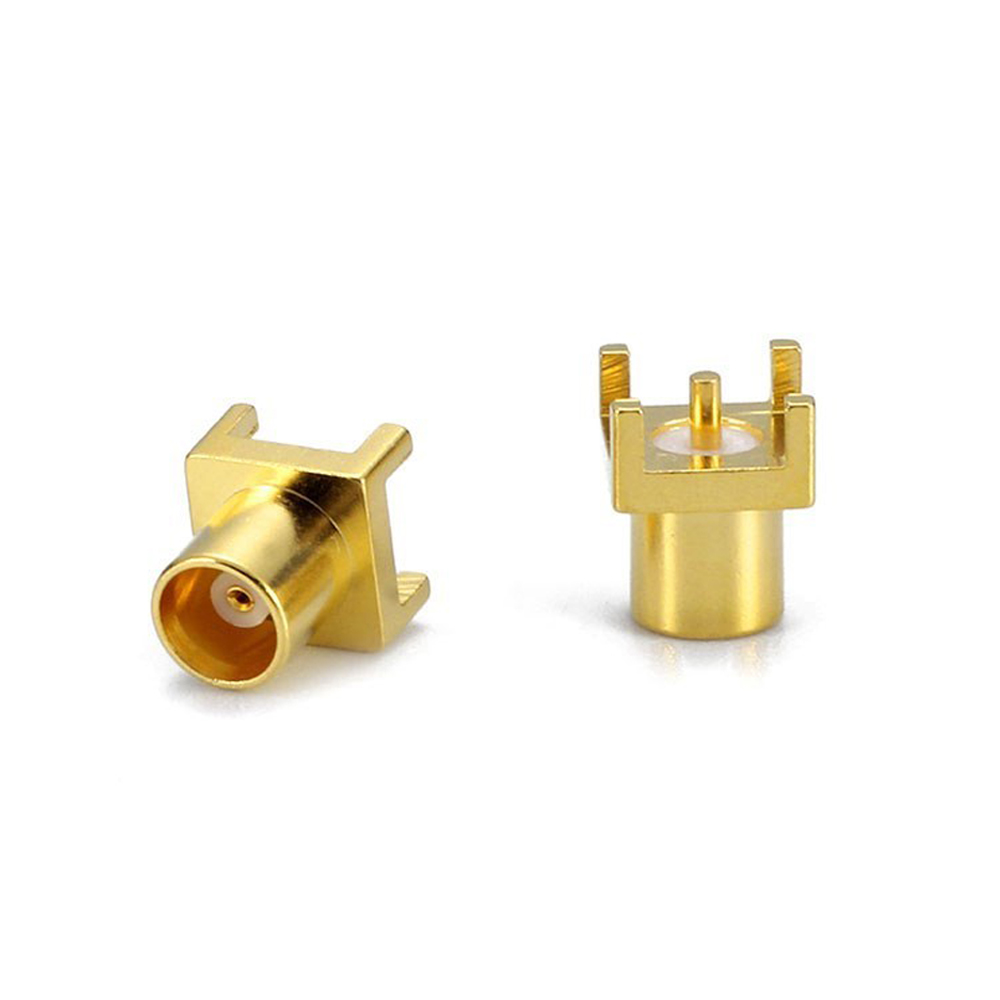

MCX Female Straight Connector for PCB

Product Overview: The MCX female straight PCB connector is designed for high-frequency PCB applications. It offers both surface mount and through-hole mounting options, supports a frequency range of DC-6GHz, and is an ideal RF interface solution for wireless communication modules, test and measurement equipment, and automotive electronic systems. Its precision mechanical structure ensures long-term reliability and excellent electrical performance.   Basic Parameters Connector Type: MCX Female, Straight Coaxial Connector Impedance: 50Ω ± 2Ω Frequency Range: DC - 6GHz VSWR: ≤1.25 @ 2GHz ≤1.35 @ 6GHz Standard Connection Typical Value Insertion Loss: ≤0.15dB @ 2GHz Shielding Effectiveness: ≥85dB @ 3GHz - Fully Shielded Design Housing Material: Brass with Nickel Plating/Gold Plating Optional, Corrosion Resistant, Good Shielding Inner Conductor: Copper with Gold Plating Insulator: PTFE (Polytetrafluoroethylene) Mounting Method: SMD Surface Mount / TH Through-Hole Mount Mating/Ejection Life…
