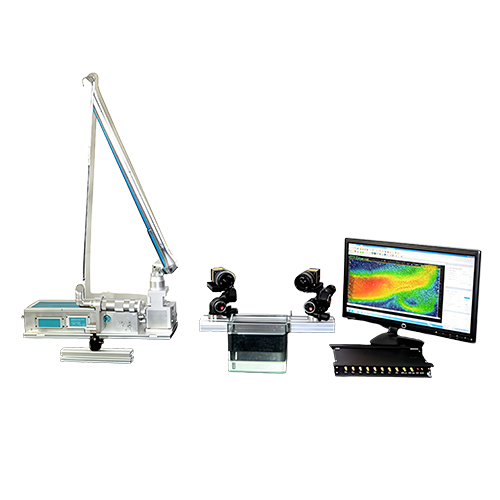

2D3C PIV Particle Image Velocimetry System

PRODUCT INTRODUCTION The Optical 2D3C PIV Flow Velocimeter builds upon the existing digital particle image velocimetry (PIV) technology. It operates on principlesanalogous to biological binocular vision, employing two digital PIV devices to simultaneously capture images of theexperimental region at specific spatial angles. The Industrial within the test area is then synthesized andcalculated from the acquired two-dimensional velocity vector fields. The Optical 2D3C PIV Velocimetry Device field  provides accurate measurement of three-component velocity fields within a two-dimensional plane, enabling researchers and engineers to obtain comprehensive flow structure information. By combining advanced stereoscopic imaging technology with high-speed cameras and precision synchronization systems, the instrument captures particle motion from multiple viewing angles and reconstructs the out-of-plane velocity component with high accuracy.  Widely used in aerodynamics, fluid mechanics, combustio…
